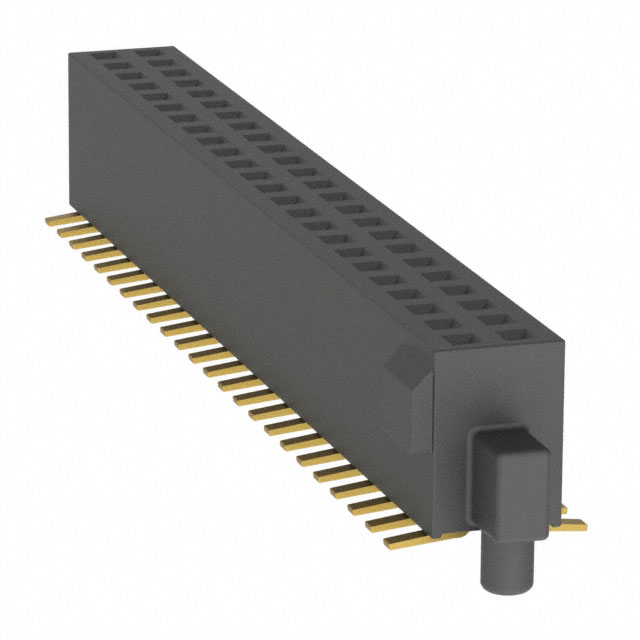

Harwin Inc. M50-4302445

M50-4302445 Harwin Inc.
Harwin Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
48
title:
M50-4302445
Insulation Height:
0.181" (4.60mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
edacadModel:
M50-4302445 Models
Applications:
General Purpose, Medical, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3922463
Contact Shape:
Square
Contact Finish Thickness - Mating:
-
Voltage Rating:
-
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
1A
Contact Length - Post:
-
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Surface Mount
Series:
Archer M50
Packaging:
Tube
Mated Stacking Heights:
6mm, 6.5mm
Contact Type:
Female Socket
Contact Material:
Phosphor Bronze
Insulation Material:
Liquid Crystal Polymer (LCP)
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is M50-4302445. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 48. 0.181" (4.60mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. The product is widely employed in general purpose, medical, telecommunications. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. It carries 0.050" (1.27mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 1a. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in surface mount configuration. The product archer m50, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. The mated stacking heights of a bespoke product includes 6mm, 6.5mm. It has typical contact type of female socket. The product is made from sturdy phosphor bronze materials. It has a robust liquid crystal polymer (lcp) insulation material. The product is designated with the ear99 code number.

pdf icon
Harwin REACH(Environmental Information)
pdf icon
Archer M50-430 Series Dimensions 30/Jan/2015(PCN Design/Specification)
pdf icon
Mult Devices EOL 12/Mar/2018(PCN Obsolescence/ EOL)
pdf icon
M50-430xx45 Drawing(Datasheets)
pdf icon
Archer Series Catalog(Datasheets)
pdf icon
M50,M52 Series Spec Sheet(Datasheets)
