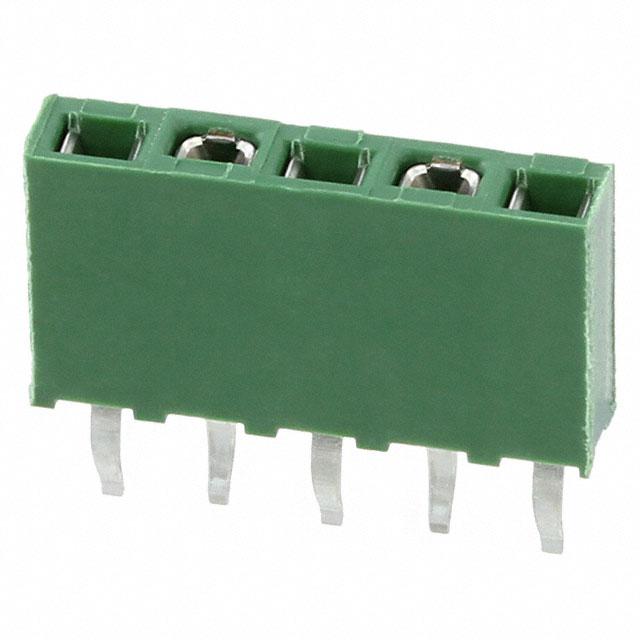

TE Connectivity AMP Connectors 215297-5

215297-5 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
118.1µin (3.00µm)
Number of Positions:
5
title:
215297-5
Insulation Height:
0.276" (7.00mm)
Insulation Color:
Green
REACH Status:
Vendor Undefined
edacadModel:
215297-5 Models
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2055923
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
31.5µin (0.80µm)
Fastening Type:
Push-Pull
Termination:
Kinked Pin, Solder
standardLeadTime:
33 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.122" (3.10mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
AMPMODU HV-100
Packaging:
Bulk
Insulation Material:
Polyester, Glass Filled
Contact Type:
Female Socket
Contact Material:
Phosphor Bronze
Base Product Number:
215297
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 215297-5. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. Additionally, it features 118.1µin (3.00µm) of post thickness. The product carries possible position value of 5. 0.276" (7.00mm) of insulation height. In addition, green is the insulation color of the product. In addition, it is vendor undefined. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 31.5µin (0.80µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features kinked pin, solder termination style. It has a long 33 weeks standard lead time. 0.122" (3.10mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product ampmodu hv-100, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyester, glass filled insulation material. It has typical contact type of female socket. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 215297, a base product number of the product. The product is designated with the ear99 code number.
