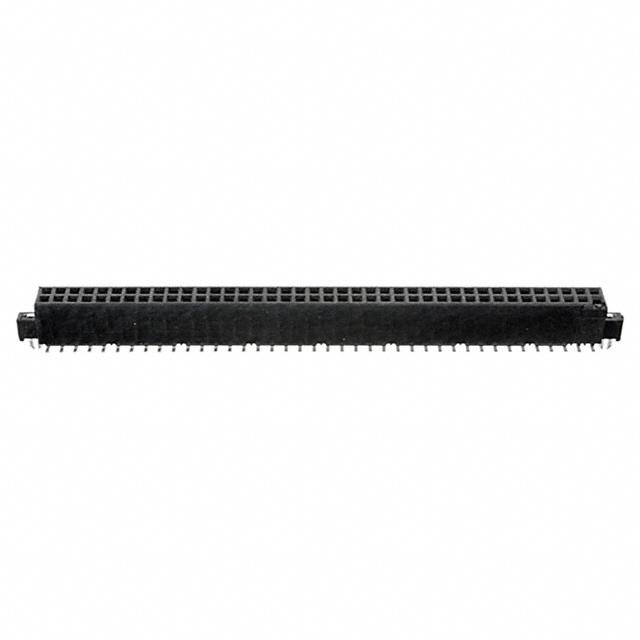

TE Connectivity AMP Connectors 5-104652-8

5-104652-8 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 105°C
Contact Finish Thickness - Post:
150.0µin (3.81µm)
Number of Positions:
80
title:
5-104652-8
Insulation Height:
0.187" (4.75mm)
Insulation Color:
Black
REACH Status:
Vendor Undefined
edacadModel:
5-104652-8 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/1121417
Contact Shape:
Square
Mated Stacking Heights:
6.35mm, 8.13mm, 9.91mm
Voltage Rating:
-
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
35 Weeks
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Surface Mount
Series:
AMPMODU 50/50 Grid
Packaging:
Tube
Insulation Material:
Liquid Crystal Polymer (LCP)
Contact Type:
Female Socket
Contact Material:
Copper Alloy
Base Product Number:
104652
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 5-104652-8. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -65°c ~ 105°c operating temperature range. Additionally, it features 150.0µin (3.81µm) of post thickness. The product carries possible position value of 80. 0.187" (4.75mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is vendor undefined. It comes in 2 of rows. It has a typical square shape. The mated stacking heights of a bespoke product includes 6.35mm, 8.13mm, 9.91mm. It carries 0.050" (1.27mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 35 weeks standard lead time. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include board lock. The product is available in surface mount configuration. The product ampmodu 50/50 grid, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. It has a robust liquid crystal polymer (lcp) insulation material. It has typical contact type of female socket. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 104652, a base product number of the product. The product is designated with the ear99 code number.
