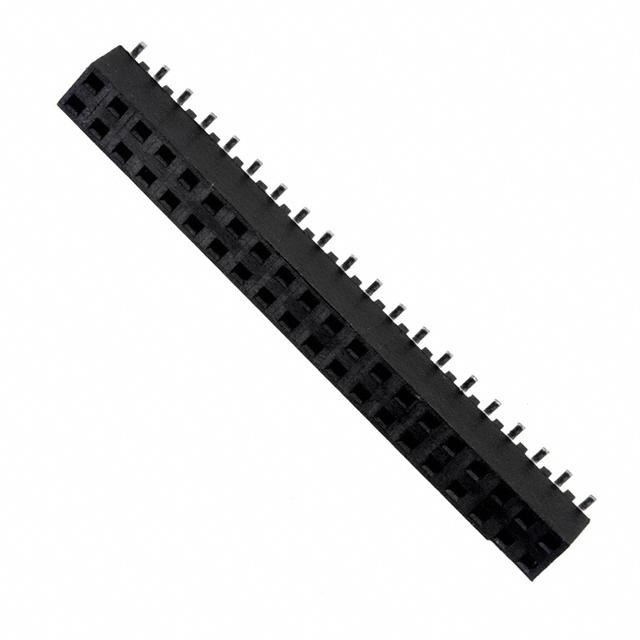

3M 150240-2020-RB

150240-2020-RB 3M
3M

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
200.0µin (5.08µm)
Number of Positions:
40
Insulation Height:
0.183" (4.65mm)
Voltage Rating:
500VDC
REACH Status:
REACH Unaffected
edacadModel:
150240-2020-RB Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1145253
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Thermoplastic
Package:
Bulk
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
1A
Contact Length - Post:
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Surface Mount
Series:
1502
Contact Type:
Female Socket
Contact Material:
Copper Alloy
Base Product Number:
150240
ECCN:
EAR99
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 150240-2020-RB. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 105°c operating temperature range. Additionally, it features 200.0µin (5.08µm) of post thickness. The product carries possible position value of 40. 0.183" (4.65mm) of insulation height. Moreover, the product has a nominal 500vdc voltage rating. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust thermoplastic insulation material. It is shipped in bulk package . It carries 0.079" (2.00mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 6 weeks standard lead time. Additionally, the product's output is 1a. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in surface mount configuration. The product 1502, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 150240, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
1502/1532 Series Insulator 3/Jun/2010(PCN Design/Specification)
pdf icon
1502 Series Datasheet(Datasheets)
pdf icon
Mult Dev SKU Update 1/Sep/2015(PCN Part Number)
pdf icon
1502 Series Drawing(Product Drawings)
