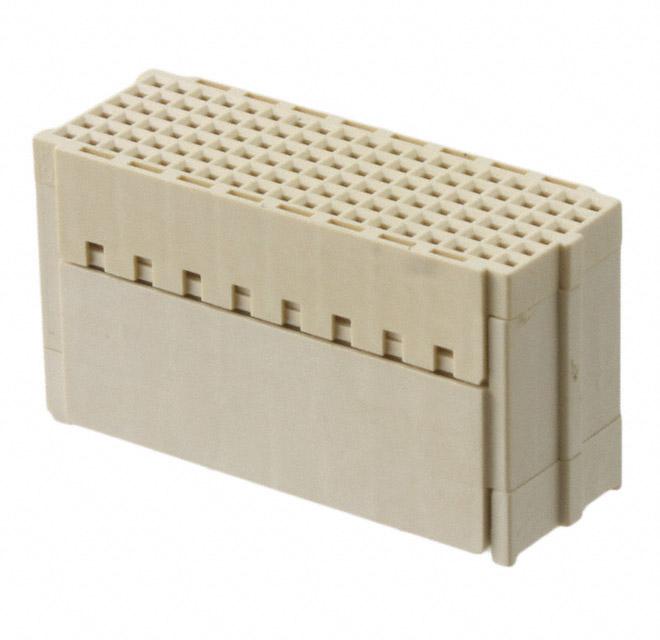

TE Connectivity Aerospace, Defense and Marine 1-2102061-2

1-2102061-2 TE Connectivity Aerospace, Defense and Marine
TE Connectivity Aerospace, Defense and Marine

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
114
Insulation Height:
0.551" (14.00mm)
Voltage Rating:
250VAC
edacadModel:
1-2102061-2 Models
Applications:
General Purpose, Military
Number of Rows:
6
Material Flammability Rating:
-
edacadModelUrl:
/en/models/2504739
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
18mm
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Tape & Reel (TR)
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Pick and Place
Mounting Type:
Surface Mount
Series:
Mezalok, VITA 61
Contact Type:
Female Socket
Contact Material:
Beryllium Copper
Base Product Number:
2102061
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Aerospace, Defense and Marine. The manufacturer part number is 1-2102061-2. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 114. 0.551" (14.00mm) of insulation height. Moreover, the product has a nominal 250vac voltage rating. The product is widely employed in general purpose, military. It comes in 6 of rows. In addition, natural is the insulation color of the product. It has a typical square shape. The mated stacking heights of a bespoke product includes 18mm. It has a robust liquid crystal polymer (lcp) insulation material. It is shipped in tape & reel (tr) package . It carries 0.050" (1.27mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include pick and place. The product is available in surface mount configuration. The product mezalok, vita 61, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy beryllium copper materials. Moreover, it corresponds to 2102061, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Multiple Drawings Document Clarification 02/Jul/2018(PCN Design/Specification)
pdf icon
Multiple Devices Document Clarification 22/Mar/2019(PCN Design/Specification)
