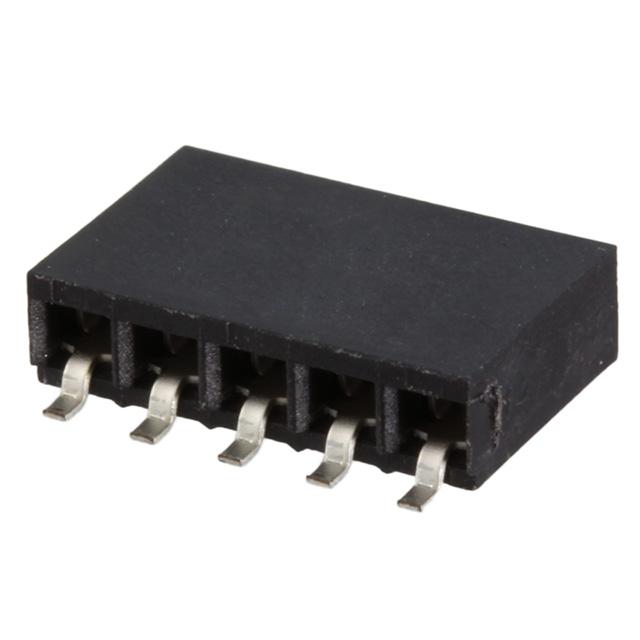

TE Connectivity AMP Connectors 5147733-4

5147733-4 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
150.0µin (3.81µm)
Number of Positions:
5
Insulation Height:
0.137" (3.47mm)
Voltage Rating:
-
REACH Status:
Vendor Undefined
edacadModel:
5147733-4 Models
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2278667
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
150.0µin (3.81µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
25 Weeks
Current Rating (Amps):
2A
Contact Length - Post:
-
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount, Right Angle
Series:
AMPMODU Mod II
Contact Type:
Female Socket
Contact Material:
Phosphor Bronze
Base Product Number:
5147733
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 5147733-4. It has nice contact finishing of tin. Additionally, the product is designed with board to board Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 125°c operating temperature range. Additionally, it features 150.0µin (3.81µm) of post thickness. The product carries possible position value of 5. 0.137" (3.47mm) of insulation height. In addition, it is vendor undefined. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polycyclohexylenedimethylene terephthalate (pct), polyester, glass filled insulation material. It is shipped in tape & reel (tr) package . receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 150.0µin (3.81µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 25 weeks standard lead time. Additionally, the product's output is 2a. It has 0.100" (2.54mm) of pitch-mating value. The product is available in surface mount, right angle configuration. The product ampmodu mod ii, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 5147733, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
5147733-4(Datasheets)
pdf icon
Multiple Devices Cancel Material Change 10/Jun/2019(PCN Design/Specification)
pdf icon
Mult Devs - material chg 25/JUN/2021(PCN Design/Specification)
