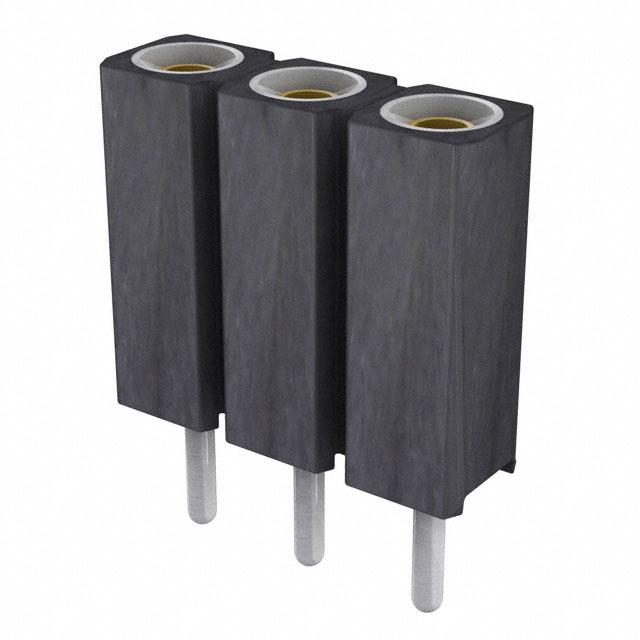

Preci-Dip 801-87-003-10-001101

Enrgtech Part No: ET11334052
|
Manufacturer Part No:
801-87-003-10-001101
|
Manufacturer: Preci-Dip

Product Information

The 801-87-003-10-001101 is a versatile 3-position socket connector designed by Preci-Dip to provide a reliable and secure connection with its through-hole mounting feature and gold plating, ensuring excellent conductivity and durability.

Number of Contacts:

Current Rating:

Dimensions:

7.62 x 2.54 x 7mm

Mounting Type:

Through Hole

Voltage Rating:

100 V ac, 150 V dc

Termination Method:

Solder

Length:

7.62mm

Housing Material:

Glass Fibre Reinforced PCT

Width:

2.54mm

Depth:

7mm

Contact Plating:

Gold, Tin

Pitch:

2.54mm

Checking for live stock

The Preci-Dip 801-87-003-10-001101 is a through-hole socket connector, meaning it is mounted onto a printed circuit board (PCB) using through-hole soldering techniques. It is a 3-position connector, connecting three individual pins or contacts. With its gold plating, it delivers reliable performance and corrosion resistance. Whether in telecommunications, automotive, industrial automation, or consumer electronics, this socket connector is versatile for various applications.

Key Specifications of Preci-Dip 801-87-003-10-001101

Pitch and Size: The connector has a standard pitch of 0.100" (2.54mm). This pitch is widely used in electronic applications and ensures compatibility with various PCB designs. The compact size of the connector allows for efficient use of space on the PCB.
Gold Plating: Gold is a highly conductive material that offers excellent corrosion resistance and ensures reliable electrical connections over an extended period. The gold plating also enhances durability and prevents oxidation, making it suitable for demanding environments. The socket connector features a gold plate on its contacts.
Through-Hole Mounting: The through-hole mounting style of the Preci-Dip 801-87-003-10-001101 connector provides mechanical stability and secure solder joints. This makes it ideal for applications where the PCB is subjected to mechanical stress or vibration.
Quality and Reliability: Preci-Dip is known for its high-quality connectors; the 801-87-003-10-001101 is no exception. The connector is designed and manufactured to satisfy stringent quality standards, guaranteeing reliable performance and long-term durability.

Application Areas of Preci-Dip 801-87-003-10-001101:

The Preci-Dip 801-87-003-10-001101 socket connector is widely used in various electronic devices and systems. It is typically used for signal and power connections between PCBs and external devices. It finds applications in telecommunications, automotive, industrial automation, and consumer electronics industries.

Socket Connectors 2,54mm Datasheet(Technical Reference)

Preci-Dip PCB Connectors Catalogue (10GB)(Technical Reference)
