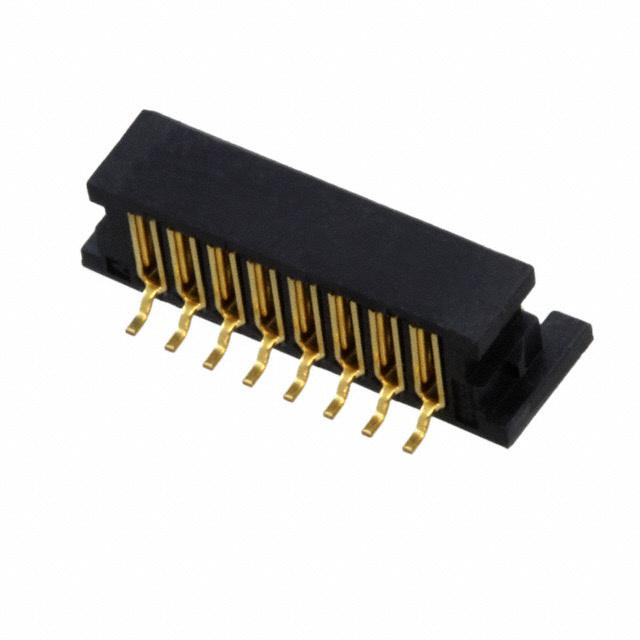

TE Connectivity AMP Connectors 1674000-1

1674000-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
-
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
8
Insulation Height:
0.128" (3.25mm)
Insulation Color:
Black
edacadModel:
1674000-1 Models
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4021526
Contact Shape:
Rectangular
Mated Stacking Heights:
-
Voltage Rating:
10VAC
Row Spacing - Mating:
-
Connector Type:
Header
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
8.00µin (0.203µm)
Fastening Type:
Locking Ramp
Termination:
Solder
Current Rating (Amps):
1A
Contact Length - Post:
-
Pitch - Mating:
0.039" (1.00mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount, Right Angle
Series:
Mini VP
Packaging:
Bulk
Insulation Material:
Polyamide (PA46), Nylon 4/6
Contact Type:
Female Blade Socket
Contact Material:
Phosphor Bronze
Base Product Number:
1674000
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 1674000-1. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 8. 0.128" (3.25mm) of insulation height. In addition, black is the insulation color of the product. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical rectangular shape. Moreover, the product has a nominal 10vac voltage rating. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 8.00µin (0.203µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 1a. It has 0.039" (1.00mm) of pitch-mating value. The product is available in surface mount, right angle configuration. The product mini vp, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa46), nylon 4/6 insulation material. It has typical contact type of female blade socket. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 1674000, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
1674000-1, 1674000-2 Material 04/Aug/2015(PCN Other)
