TE Connectivity AMP Connectors 1375870-5

1375870-5 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Detailed Description:

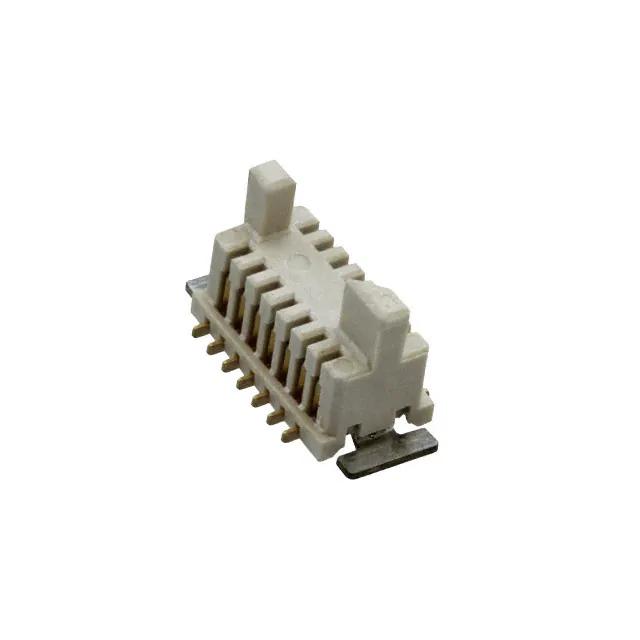

14 Position Receptacle Connector 0.031" (0.80mm) Surface Mount Gold
Operating Temperature:
-55°C ~ 85°C
Contact Finish Thickness - Post:
5.11µin (0.130µm)
Number of Positions:
14
Base Part Number:
1375870
Insulation Height:
0.197" (5.00mm)
Insulation Color:
Natural
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Manufacturer:
TE Connectivity AMP Connectors
Voltage Rating:
30VAC
Connector Type:
Receptacle
Number of Positions Loaded:
All
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Friction Lock
Termination:
Solder
Pitch - Mating:
0.031" (0.80mm)
Features:
Solder Retention
Mounting Type:
Surface Mount
Series:
AMPMODU Micro
Packaging:
Cut Tape (CT)
Customer Reference:
Contact Type:
Female Blade Socket
Contact Finish - Post:
Gold
Insulation Material:
Liquid Crystal Polymer (LCP)
Contact Material:
Phosphor Bronze
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 1375870-5. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It features 14 position receptacle connector 0.031" (0.80mm) surface mount gold. The product has -55°c ~ 85°c operating temperature range. Additionally, it features 5.11µin (0.130µm) of post thickness. The product carries possible position value of 14. Base Part Number: 1375870. 0.197" (5.00mm) of insulation height. In addition, natural is the insulation color of the product. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. The te connectivity amp connectors's product offers user-desired applications. Moreover, the product has a nominal 30vac voltage rating. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, friction lock is the Fastening Type of the product. The product features solder termination style. It has 0.031" (0.80mm) of pitch-mating value. The splendid features of the product include solder retention. The product is available in surface mount configuration. The product ampmodu micro, is a highly preferred choice for users. In addition, cut tape (ct) is the available packaging type of the product. It has typical contact type of female blade socket. It has possible gold contact post finishing. It has a robust liquid crystal polymer (lcp) insulation material. The product is made from sturdy phosphor bronze materials.
