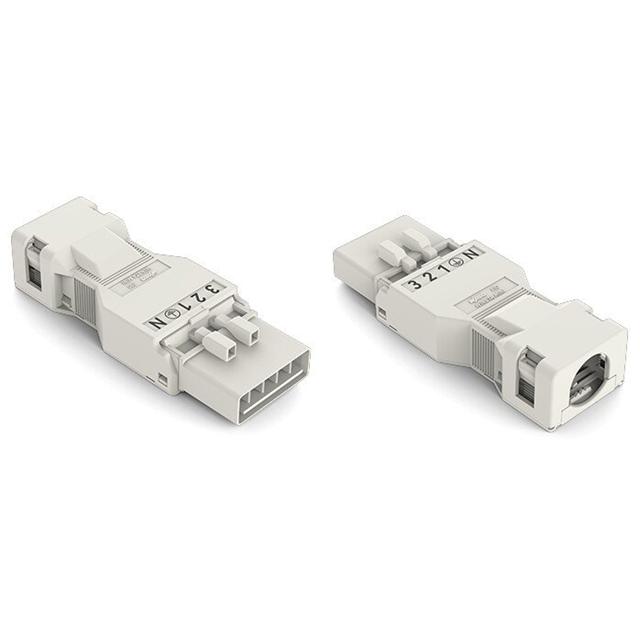

WAGO Corporation 890-135

890-135 WAGO Corporation
WAGO Corporation

Product Information

HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screwless - Push-In Spring
Housing Material:
Polyamide (PA66), Nylon 6/6
Operating Temperature:
-35°C ~ 85°C
Screw Size:
-
Wire Strip Length:
9mm
Type:
Plug, Male Pins
Number of Positions:
5
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.25-1.5mm²
Plug Wire Entry:
180°
Insulation Height:
0.622" (15.80mm)
Material Flammability Rating:
UL94 V-0
Manufacturer:
WAGO Corporation
Moisture Sensitivity Level (MSL):
Not Applicable
Current - IEC:
13A
Number of Levels:
1
Wire Gauge or Range - AWG:
16-22 AWG
Voltage - UL:
600 V
Torque - Screw:
-
standardLeadTime:
12 Weeks
Contact Mating Finish:
-
Voltage - IEC:
400 V
Ingress Protection:
IP40
Features:
Strain Relief
Mounting Type:
Free Hanging (In-Line)
Color:
Black
Series:
WINSTA® MINI
Positions Per Level:
5
Packaging:
Box
Header Orientation:
-
Current - UL:
12 A
Pitch:
0.173" (4.40mm)
ECCN:
EAR99
Contact Material:
-
Checking for live stock

This is manufactured by WAGO Corporation. The manufacturer part number is 890-135. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screwless - push-in spring terminal style. The product also features robust polyamide (pa66), nylon 6/6 housing material. The product has -35°c ~ 85°c operating temperature range. The typical length of the wire strip is 9mm. It comes in plug, male pins configuration. The product carries possible position value of 5. A 0.25-1.5mm² of wire gauge. It also a 180° plug wire entry. 0.622" (15.80mm) of insulation height. It carries ul94 v-0 of material flammability rating. The wago corporation's product offers user-desired applications. Its typical moisture sensitivity level is not applicable. An IEC current of 13a. The product carries 1 levels. While 16-22 awg is its range or wire gauge. While 600 v is the typical voltage of the product. It has a long 12 weeks standard lead time. The nominal voltage of the product is 400 v. It is IP rated with ip40. The splendid features of the product include strain relief. The product is available in free hanging (in-line) configuration. It has a classic black colour. The product winsta® mini, is a highly preferred choice for users. It has 5 positions each level. In addition, box is the available packaging type of the product. The typical current includes 12 a. Moreover, the product is 0.173" (4.40mm). The product is designated with the ear99 code number.
