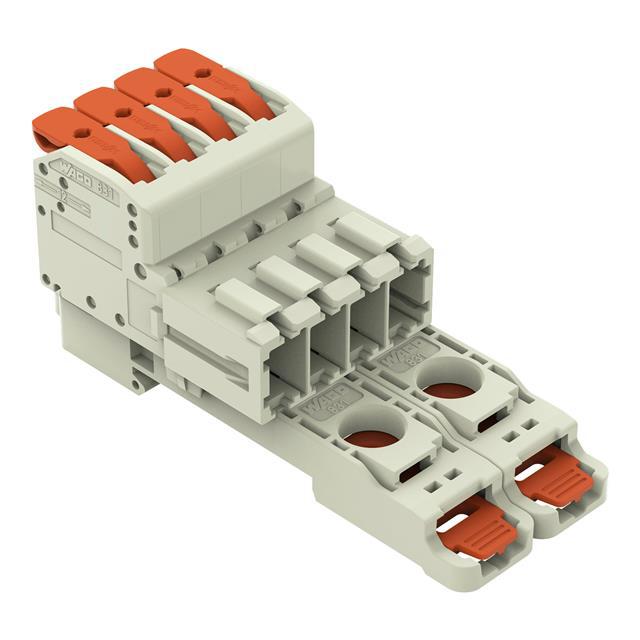

WAGO Corporation 831-1204/306-000

831-1204-306-000 WAGO Corporation 831-1204/306-000
WAGO Corporation

Product Information

HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screwless - Push-In Spring
Housing Material:
Polyamide (PA66), Nylon 6/6
Operating Temperature:
-60°C ~ 105°C
Screw Size:
-
Wire Strip Length:
13-15mm
Type:
Plug, Female Sockets
Number of Positions:
4
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.5-10mm²
Plug Wire Entry:
180°
Insulation Height:
0.984" (25.00mm)
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
Not Applicable
Current - IEC:
41A
Wire Gauge or Range - AWG:
8-20 AWG
Voltage - UL:
600 V
Torque - Screw:
-
standardLeadTime:
12 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
1 kV
Ingress Protection:
-
Features:
Lever Actuated
Mounting Type:
DIN Rail/Channel
Color:
Gray
Series:
MCSMAXI 6
Positions Per Level:
4
Header Orientation:
-
Current - UL:
35 A
Pitch:
0.300" (7.62mm)
Number of Levels:
1
ECCN:
EAR99
Contact Material:
Electrolytic Copper
Checking for live stock

This is manufactured by WAGO Corporation. The manufacturer part number is 831-1204/306-000. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screwless - push-in spring terminal style. The product also features robust polyamide (pa66), nylon 6/6 housing material. The product has -60°c ~ 105°c operating temperature range. The typical length of the wire strip is 13-15mm. It comes in plug, female sockets configuration. The product carries possible position value of 4. A 0.5-10mm² of wire gauge. It also a 180° plug wire entry. 0.984" (25.00mm) of insulation height. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is not applicable. An IEC current of 41a. While 8-20 awg is its range or wire gauge. While 600 v is the typical voltage of the product. It has a long 12 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 1 kv. The splendid features of the product include lever actuated. The product is available in din rail/channel configuration. It has a classic gray colour. The product mcsmaxi 6, is a highly preferred choice for users. It has 4 positions each level. The typical current includes 35 a. Moreover, the product is 0.300" (7.62mm). The product carries 1 levels. The product is designated with the ear99 code number. The product is made from sturdy electrolytic copper materials.
