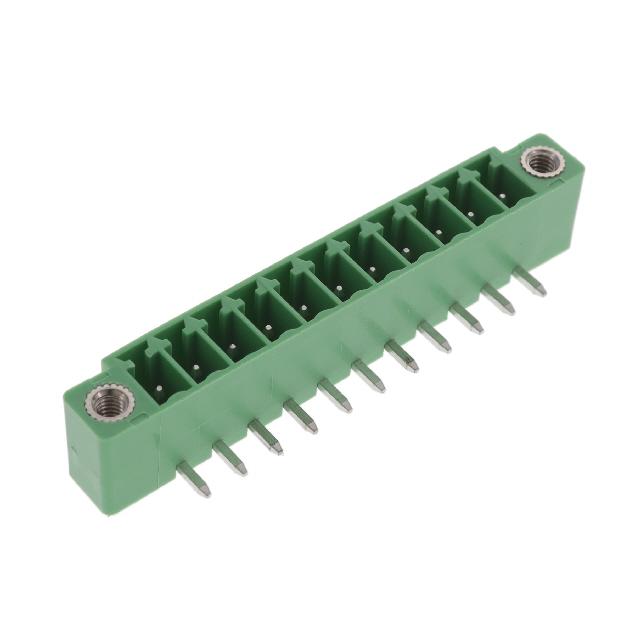

Molex 0395066011

0395066011 Molex
Molex

Product Information

HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder
Operating Temperature:
-40°C ~ 105°C
Type:
Header, Male Pins, Shrouded (4 Side)
Number of Positions:
11
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
edacadModel:
0395066011 Models
edacadModelUrl:
/en/models/4480411
Manufacturer:
Molex
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
-
Header Orientation:
90°, Right Angle
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
standardLeadTime:
10 Weeks
Contact Mating Finish:
Tin
Number of Levels:
1
Features:
Mating Flange
Mounting Type:
Through Hole
Color:
Green
Series:
Eurostyle ESE 39506
Positions Per Level:
11
Packaging:
Bulk
Current - UL:
8 A
Pitch:
0.138" (3.50mm)
Base Product Number:
039506
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0395066011. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Moreover, it has solder terminal style. The product has -40°c ~ 105°c operating temperature range. It comes in header, male pins, shrouded (4 side) configuration. The product carries possible position value of 11. The molex's product offers user-desired applications. Its typical moisture sensitivity level is 1 (unlimited). The product has a 90°, right angle of a header orientation. While 300 v is the typical voltage of the product. It has a long 10 weeks standard lead time. The mating finish of the contact is tin. The product carries 1 levels. The splendid features of the product include mating flange. The product is available in through hole configuration. It has a classic green colour. The product eurostyle ese 39506, is a highly preferred choice for users. It has 11 positions each level. In addition, bulk is the available packaging type of the product. The typical current includes 8 a. Moreover, the product is 0.138" (3.50mm). Moreover, it corresponds to 039506, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
39505/39506/39515/39516 Series Design 29/May/2014(PCN Design/Specification)
pdf icon
39500-001 Prod Spec(Datasheets)
pdf icon
39506-6011.pdf(3D Drawings)
pdf icon
395066011 Drawing(Product Drawings)
