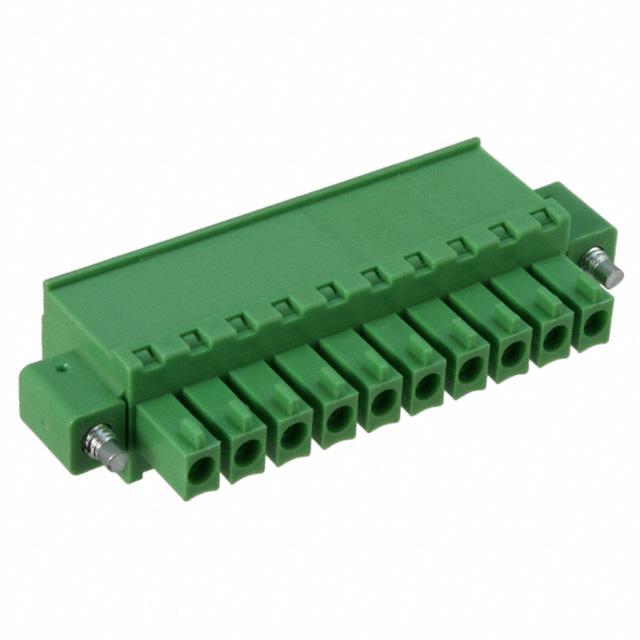

Amphenol Anytek TS10315D0000G

TS10315D0000G Amphenol Anytek
Amphenol Anytek

Product Information

HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Thermoplastic Resin
Operating Temperature:
-40°C ~ 115°C
Screw Size:
M2
Wire Strip Length:
6-7mm
Type:
Plug, Female Sockets
Number of Positions:
10
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.5-1.5mm²
title:
TS10315D0000G
Plug Wire Entry:
270°
Insulation Height:
0.752" (19.10mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Manufacturer:
Amphenol Anytek
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
-
Header Orientation:
-
Wire Gauge or Range - AWG:
16-28 AWG
Voltage - UL:
300 V
Torque - Screw:
0.2 Nm (1.7 Lb-In)
standardLeadTime:
12 Weeks
Contact Mating Finish:
Tin
Number of Levels:
1
Ingress Protection:
-
Features:
Mating Flange
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
02-381
Positions Per Level:
10
Packaging:
Bulk
Current - UL:
8 A
Pitch:
0.150" (3.81mm)
Contact Material:
Copper Alloy
Base Product Number:
TS10
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol Anytek. The manufacturer part number is TS10315D0000G. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust thermoplastic resin housing material. The product has -40°c ~ 115°c operating temperature range. It is available in screw size of m2. The typical length of the wire strip is 6-7mm. It comes in plug, female sockets configuration. The product carries possible position value of 10. A 0.5-1.5mm² of wire gauge. It also a 270° plug wire entry. 0.752" (19.10mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. The amphenol anytek's product offers user-desired applications. Its typical moisture sensitivity level is 1 (unlimited). While 16-28 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.2 nm (1.7 lb-in). It has a long 12 weeks standard lead time. The mating finish of the contact is tin. The product carries 1 levels. The splendid features of the product include mating flange. The product is available in free hanging (in-line) configuration. It has a classic green colour. The product 02-381, is a highly preferred choice for users. It has 10 positions each level. In addition, bulk is the available packaging type of the product. The typical current includes 8 a. Moreover, the product is 0.150" (3.81mm). The product is made from sturdy copper alloy materials. Moreover, it corresponds to ts10, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
20020011 Drawing(Product Drawings)
pdf icon
TSxx31xD00J0G Drawing(Product Drawings)
pdf icon
Anytek Integration 02/Apr/2015(PCN Part Number)
pdf icon
Multiple Devices Design 28/Apr/2014(PCN Design/Specification)
