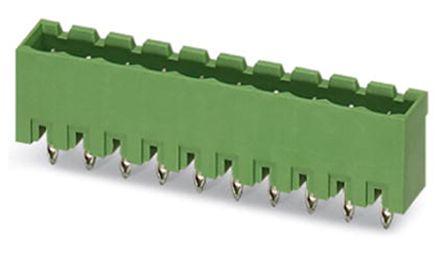

Phoenix Contact COMBICON EMSTBVA, 5.08mm Pitch, 17 Way PCB Terminal Block Header

1915880 Phoenix Contact COMBICON EMSTBVA, 5.08mm Pitch, 17 Way PCB Terminal Block Header
Phoenix Contact

Product Information

Shrouded/Unshrouded:
Shrouded
Current Rating:
12A
Series:
EMSTBVA 2.5/17-G-5.08
Termination Method:
Press Fit
Connector System:
Wire to Board
Pitch:
5.08mm
Number of Contacts:
17
Contact Material:
Tin
HTSUS:
8536.69.4040
Termination Style:
Press-Fit
Housing Material:
Polybutylene Terephthalate (PBT)
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-
Type:
Header, Male Pins, Shrouded (4 Side)
Number of Positions:
17
Contact Tail Length:
0.154" (3.90mm)
Wire Gauge or Range - mm²:
-
title:
1915880
Plug Wire Entry:
-
Insulation Height:
0.472" (12.00mm)
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Moisture Sensitivity Level (MSL):
Not Applicable
Current - IEC:
12A
Number of Levels:
1
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
Torque - Screw:
-
Contact Mating Finish:
Tin
Voltage - IEC:
320 V
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON EMSTBV
Positions Per Level:
17
Packaging:
Bulk
Header Orientation:
Vertical
Current - UL:
12 A
Pitch:
0.200" (5.08mm)
ECCN:
EAR99
Contact Material:
-
Checking for live stock

This is COMBICON EMSTBVA 5.08mm Pitch 17 Way PCB Terminal Block Header manufactured by Phoenix Contact. The manufacturer part number is 1915880. It is supplied as shrouded. The product has a current rating of 12a. The product emstbva 2.5/17-g-5.08, is a highly preferred choice for users. It allows press fit termination method. It allows wire to board connector system. Moreover, the product is 5.08mm. The product contains 17 contacts. The product is made from sturdy tin materials. It is assigned with possible HTSUS value of 8536.69.4040. Moreover, it has press-fit terminal style. The product also features robust polybutylene terephthalate (pbt) housing material. It comes in header, male pins, shrouded (4 side) configuration. The product carries possible position value of 17. The typical tail length of the product is [Contact Tail Lenght]. 0.472" (12.00mm) of insulation height. It carries ul94 v-0 of material flammability rating. The phoenix contact's product offers user-desired applications. Its typical moisture sensitivity level is not applicable. An IEC current of 12a. The product carries 1 levels. While 300 v is the typical voltage of the product. The mating finish of the contact is tin. The nominal voltage of the product is 320 v. The product is available in through hole configuration. It has a classic green colour. The product combicon emstbv, is a highly preferred choice for users. It has 17 positions each level. In addition, bulk is the available packaging type of the product. The product has a vertical of a header orientation. The typical current includes 12 a. Moreover, the product is 0.200" (5.08mm). The product is designated with the ear99 code number.
