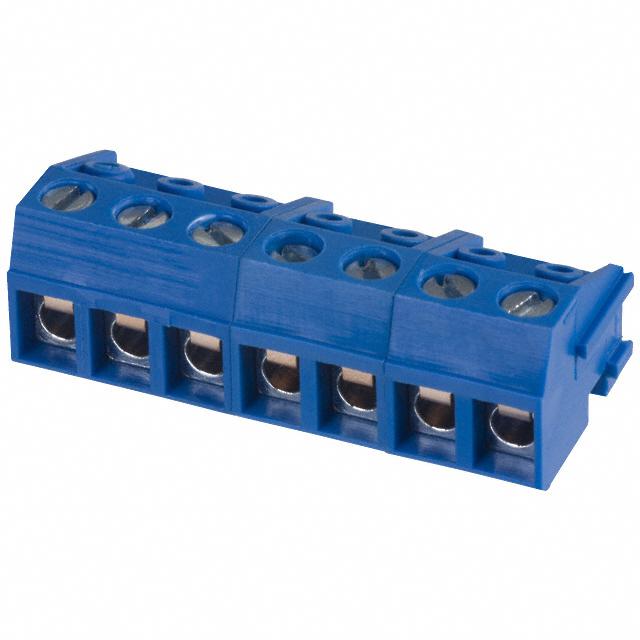

On Shore Technology Inc. ED130/7DS

ED130-7DS On Shore Technology Inc. ED130/7DS
On Shore Technology Inc.

Product Information

HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-30°C ~ 105°C
Screw Size:
M2.6
Wire Strip Length:
6mm
Type:
Plug for Unshrouded Header
Number of Positions:
7
Contact Tail Length:
-
Wire Gauge or Range - mm²:
1.5mm²
Plug Wire Entry:
90°
Insulation Height:
0.425" (10.80mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
-
Number of Levels:
1
Wire Gauge or Range - AWG:
14-22 AWG
Voltage - UL:
300 V
Torque - Screw:
0.4 Nm (3.5 Lb-In)
Contact Mating Finish:
-
Ingress Protection:
-
Features:
Interlocking (Side)
Mounting Type:
Free Hanging (In-Line)
Color:
Blue
Series:
ED130
Positions Per Level:
7
Header Orientation:
-
Current - UL:
10 A
Pitch:
0.197" (5.00mm)
Contact Material:
Copper Beryllium
Base Product Number:
ED130
ECCN:
EAR99
Checking for live stock

This is manufactured by On Shore Technology Inc.. The manufacturer part number is ED130/7DS. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screw terminal style. The product also features robust polyamide (pa), nylon housing material. The product has -30°c ~ 105°c operating temperature range. It is available in screw size of m2.6. The typical length of the wire strip is 6mm. It comes in plug for unshrouded header configuration. The product carries possible position value of 7. A 1.5mm² of wire gauge. It also a 90° plug wire entry. 0.425" (10.80mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The product carries 1 levels. While 14-22 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.4 nm (3.5 lb-in). The splendid features of the product include interlocking (side). The product is available in free hanging (in-line) configuration. It has a classic blue colour. The product ed130, is a highly preferred choice for users. It has 7 positions each level. The typical current includes 10 a. Moreover, the product is 0.197" (5.00mm). The product is made from sturdy copper beryllium materials. Moreover, it corresponds to ed130, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
ED130/XDS(Datasheets)
pdf icon
ED Part Number Breakdown(Other Related Documents)
pdf icon
OnShore RoHS/REACH(Environmental Information)
