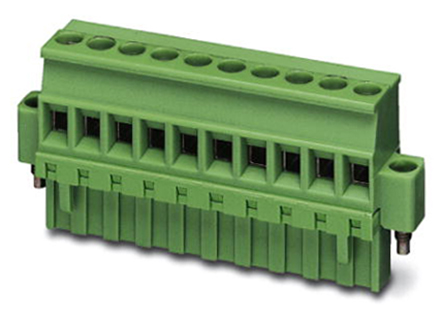

Phoenix Contact 1835520

1835520 Phoenix Contact
Phoenix Contact

Product Information

Current Rating:
12A
Voltage Rating:
630 V
Series:
MVSTBR 2.5/ 7-STF
Termination Method:
Screw
Pitch:
5mm
Number of Contacts:
7
Type:
Connector
Contact Material:
Tin
HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M3
Wire Strip Length:
7mm
Type:
Plug, Female Sockets
Number of Positions:
7
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.2-2.5mm²
Plug Wire Entry:
90°
Insulation Height:
1.024" (26.01mm)
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Wire Gauge or Range - AWG:
12-30 AWG
Voltage - UL:
300 V
Torque - Screw:
0.5-0.6 Nm (4.4-5.3 Lb-In)
standardLeadTime:
17 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
Mating Flange, Retention Latches (Wire Side)
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON MVSTBR
Positions Per Level:
7
Header Orientation:
-
Current - UL:
15 A
Pitch:
0.197" (5.00mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1835520. The product has a current rating of 12a. Moreover, the product has a nominal 630 v voltage rating. The product mvstbr 2.5/ 7-stf, is a highly preferred choice for users. It allows screw termination method. Moreover, the product is 5mm. The product contains 7 contacts. It comes in connector configuration. The product is made from sturdy tin materials. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa), nylon housing material. It is available in screw size of m3. The typical length of the wire strip is 7mm. It comes in plug, female sockets configuration. The product carries possible position value of 7. A 0.2-2.5mm² of wire gauge. It also a 90° plug wire entry. 1.024" (26.01mm) of insulation height. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 12a. While 12-30 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.5-0.6 nm (4.4-5.3 lb-in). It has a long 17 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 630 v. The splendid features of the product include mating flange, retention latches (wire side). The product is available in free hanging (in-line) configuration. It has a classic green colour. The product combicon mvstbr, is a highly preferred choice for users. It has 7 positions each level. The typical current includes 15 a. Moreover, the product is 0.197" (5.00mm). The product carries 1 levels. The product is designated with the ear99 code number.
