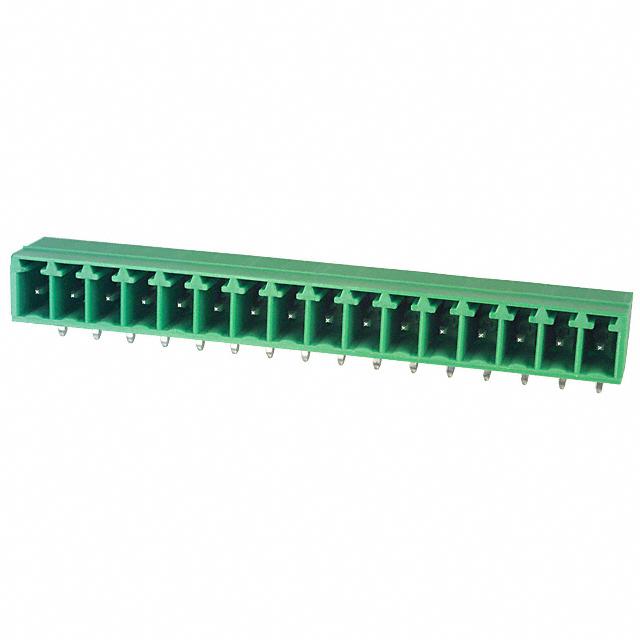

On Shore Technology Inc. EDSTLZ1550/16

EDSTLZ1550-16 On Shore Technology Inc. EDSTLZ1550/16
EDSTLZ1550/16
On Shore Technology Inc.

Product Information

HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Termination Style:
-
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-30°C ~ 105°C
Screw Size:
-
Wire Strip Length:
-
Type:
Header, Male Pins, Shrouded (4 Side)
Number of Positions:
16
Contact Tail Length:
0.138" (3.50mm)
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
0.276" (7.00mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
-
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
-
Number of Levels:
1
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
25 Weeks
Contact Mating Finish:
-
Ingress Protection:
-
Features:
-
Mounting Type:
Solder
Color:
-
Series:
EDSTLZ1550
Positions Per Level:
16
Header Orientation:
90°, Right Angle
Pitch:
0.150" (3.81mm)
ECCN:
EAR99
Base Product Number:
EDSTL
Contact Material:
-
Checking for live stock

This is manufactured by On Shore Technology Inc.. The manufacturer part number is EDSTLZ1550/16. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product also features robust polyamide (pa), nylon housing material. The product has -30°c ~ 105°c operating temperature range. It comes in header, male pins, shrouded (4 side) configuration. The product carries possible position value of 16. The typical tail length of the product is [Contact Tail Lenght]. 0.276" (7.00mm) of insulation height. In addition, it is reach unaffected. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The product carries 1 levels. While 300 v is the typical voltage of the product. It has a long 25 weeks standard lead time. The product is available in solder configuration. The product edstlz1550, is a highly preferred choice for users. It has 16 positions each level. The product has a 90°, right angle of a header orientation. Moreover, the product is 0.150" (3.81mm). The product is designated with the ear99 code number. Moreover, it corresponds to edstl, a base product number of the product.

pdf icon
EDSTL(Z)1550/X(Datasheets)
pdf icon
ED Part Number Breakdown(Other Related Documents)
pdf icon
OnShore RoHS/REACH(Environmental Information)
