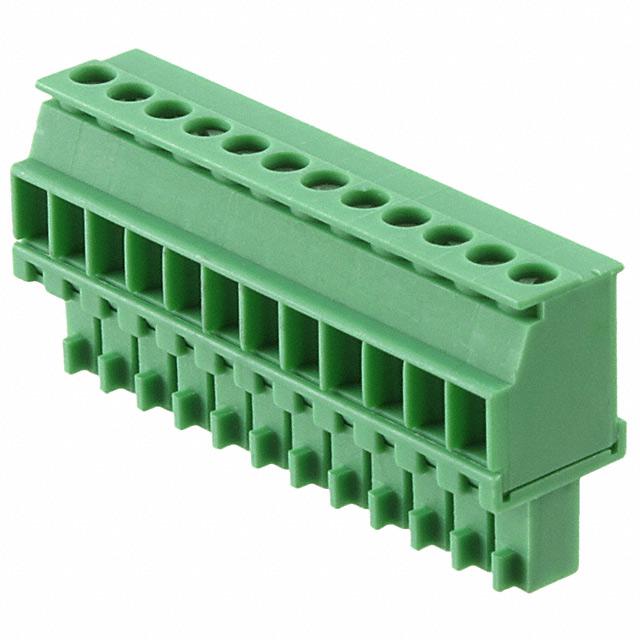

Phoenix Contact 1863259

1863259 Phoenix Contact
1863259
1863259
Phoenix Contact

Product Information

Series:
MINI COMBICON MCVR
Current Rating:
8A
Mounting Type:
Cable Mount
Voltage Rating:
320 V
Gender:
Female
Colour:
Green
Material:
Polyamide
Length:
42.8mm
Termination Method:
Screw
Width:
10.4mm
Depth:
19.1mm
Number of Rows:
1
Pitch:
3.5mm
Number of Contacts:
12
Type:
Plug
Body Orientation:
Straight
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M2
Wire Strip Length:
7mm
Type:
Plug, Female Sockets
Number of Positions:
12
Wire Gauge or Range - mm²:
0.14-1.5mm²
Plug Wire Entry:
90°
Insulation Height:
0.752" (19.10mm)
REACH Status:
REACH Unaffected
edacadModel:
1863259 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2528375
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
8A
Contact Tail Length:
-
Voltage - UL:
300 V
Torque - Screw:
0.22-0.25 Nm (1.9-2.2 Lb-In)
standardLeadTime:
16 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
320 V
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON MCVR
Positions Per Level:
12
Header Orientation:
-
Current - UL:
8 A
Wire Gauge or Range - AWG:
14-30 AWG
Pitch:
0.138" (3.50mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1863259. The product mini combicon mcvr, is a highly preferred choice for users. The product has a current rating of 8a. The product is available in cable mount configuration. Moreover, the product has a nominal 320 v voltage rating. In addition, female is the available "Gender" of the product. It has a decent green colour. The product is made from highly stable and reliable polyamide. Its accurate length is 42.8mm. It allows screw termination method. Furthermore, the product is 10.4mm wide. The product comes in 19.1mm depth. It comes in 1 of rows. Moreover, the product is 3.5mm. The product contains 12 contacts. It comes in plug configuration. It has straight body orientation. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa), nylon housing material. It is available in screw size of m2. The typical length of the wire strip is 7mm. It comes in plug, female sockets configuration. The product carries possible position value of 12. A 0.14-1.5mm² of wire gauge. It also a 90° plug wire entry. 0.752" (19.10mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 8a. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.22-0.25 nm (1.9-2.2 lb-in). It has a long 16 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 320 v. The product is available in free hanging (in-line) configuration. It has a classic green colour. The product combicon mcvr, is a highly preferred choice for users. It has 12 positions each level. The typical current includes 8 a. While 14-30 awg is its range or wire gauge. Moreover, the product is 0.138" (3.50mm). The product carries 1 levels. The product is designated with the ear99 code number.
