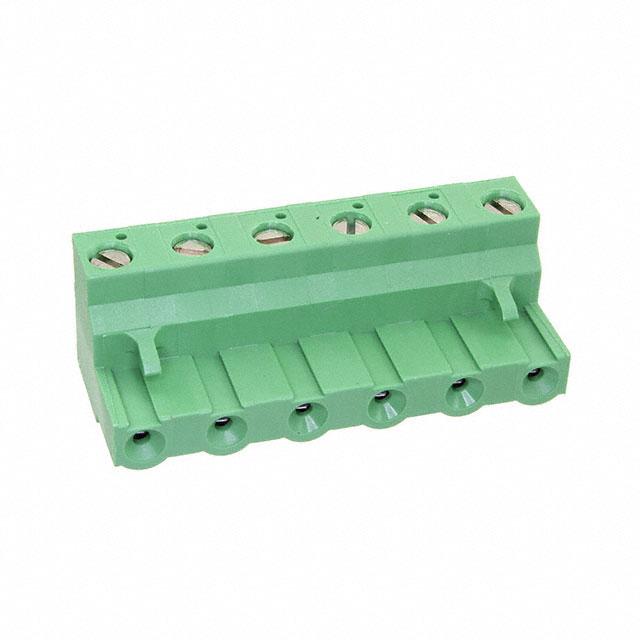

TE Connectivity AMP Connectors 796981-6

796981-6 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA66), Nylon 6/6
Operating Temperature:
-40°C ~ 110°C
Screw Size:
M3
Wire Strip Length:
6-7.5mm
Type:
Plug, Female Sockets
Number of Positions:
6
Wire Gauge or Range - mm²:
0.05-3mm²
Plug Wire Entry:
180°
Insulation Height:
0.610" (15.49mm)
REACH Status:
REACH Affected
edacadModel:
796981-6 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1137073
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
-
Number of Levels:
1
Contact Tail Length:
-
Voltage - UL:
300 V
Torque - Screw:
0.79 Nm (7.0 Lb-In)
standardLeadTime:
27 Weeks
Contact Mating Finish:
Tin
Ingress Protection:
-
Features:
Retention Latches (Non-Wire Side)
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
Buchanan
Positions Per Level:
6
Header Orientation:
-
Current - UL:
15 A
Wire Gauge or Range - AWG:
12-30 AWG
Pitch:
0.300" (7.62mm)
Contact Material:
Phosphor Bronze
Base Product Number:
796981
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 796981-6. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa66), nylon 6/6 housing material. The product has -40°c ~ 110°c operating temperature range. It is available in screw size of m3. The typical length of the wire strip is 6-7.5mm. It comes in plug, female sockets configuration. The product carries possible position value of 6. A 0.05-3mm² of wire gauge. It also a 180° plug wire entry. 0.610" (15.49mm) of insulation height. In addition, it is reach affected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The product carries 1 levels. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.79 nm (7.0 lb-in). It has a long 27 weeks standard lead time. The mating finish of the contact is tin. The splendid features of the product include retention latches (non-wire side). The product is available in free hanging (in-line) configuration. It has a classic green colour. The product buchanan, is a highly preferred choice for users. It has 6 positions each level. The typical current includes 15 a. While 12-30 awg is its range or wire gauge. Moreover, the product is 0.300" (7.62mm). The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 796981, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
796981-6(Datasheets)
