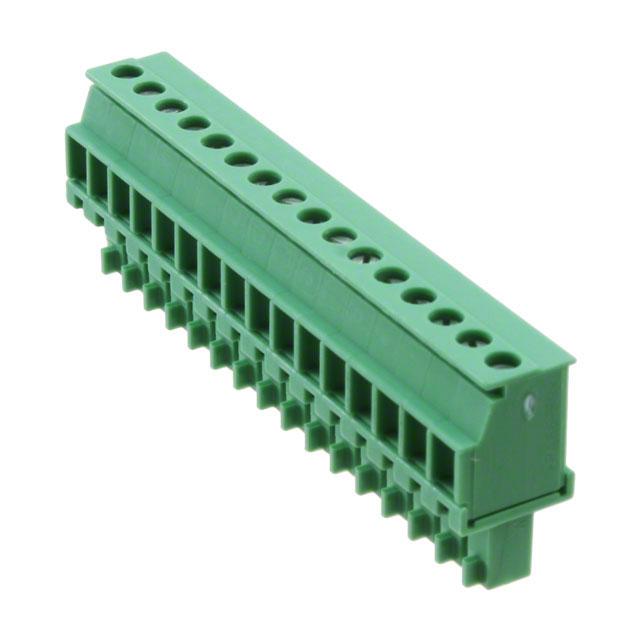

Phoenix Contact 1827266

1827266 Phoenix Contact
1827266
1827266
Phoenix Contact

Product Information

Current Rating:
8A
Mounting Type:
Cable Mount
Voltage Rating:
320 V
Series:
MCVR 1.5/16-ST-3.81
Colour:
Green
Material:
Polyamide
Pluggable Terminal Block Type:
Plug
Termination Method:
Screw
Number of Rows:
1
Pitch:
3.81mm
Number of Contacts:
16
Body Orientation:
Straight
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M2
Wire Strip Length:
7mm
Type:
Plug, Female Sockets
Number of Positions:
16
Wire Gauge or Range - mm²:
0.14-1.5mm²
Plug Wire Entry:
90°
Insulation Height:
0.752" (19.10mm)
REACH Status:
REACH Unaffected
edacadModel:
1827266 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/260573
Manufacturer:
Phoenix Contact
Contact Tail Length:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
8A
Number of Levels:
1
Wire Gauge or Range - AWG:
14-30 AWG
Voltage - UL:
300 V
Torque - Screw:
0.22-0.25 Nm (1.9-2.2 Lb-In)
standardLeadTime:
7 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
320 V
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON MCVR
Positions Per Level:
16
Packaging:
Bulk
Header Orientation:
-
Current - UL:
8 A
Pitch:
0.150" (3.81mm)
Contact Material:
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1827266. The product has a current rating of 8a. The product is available in cable mount configuration. Moreover, the product has a nominal 320 v voltage rating. The product mcvr 1.5/16-st-3.81, is a highly preferred choice for users. It has a decent green colour. The product is made from highly stable and reliable polyamide. It allows screw termination method. It comes in 1 of rows. Moreover, the product is 3.81mm. The product contains 16 contacts. It has straight body orientation. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa), nylon housing material. It is available in screw size of m2. The typical length of the wire strip is 7mm. It comes in plug, female sockets configuration. The product carries possible position value of 16. A 0.14-1.5mm² of wire gauge. It also a 90° plug wire entry. 0.752" (19.10mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. The phoenix contact's product offers user-desired applications. Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 8a. The product carries 1 levels. While 14-30 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.22-0.25 nm (1.9-2.2 lb-in). It has a long 7 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 320 v. The product is available in free hanging (in-line) configuration. It has a classic green colour. The product combicon mcvr, is a highly preferred choice for users. It has 16 positions each level. In addition, bulk is the available packaging type of the product. The typical current includes 8 a. Moreover, the product is 0.150" (3.81mm). The product is designated with the ear99 code number.

pdf icon
MCVR 1,5/16-ST-3,81(Technical Reference)
pdf icon
1827266(Datasheets)
pdf icon
Design chg 07/APR/2022(PCN Design/Specification)
