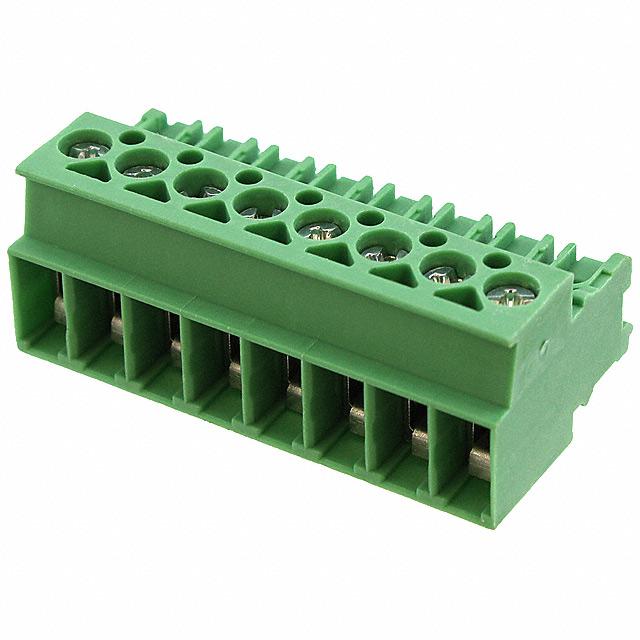

Phoenix Contact 1704220

1704220 Phoenix Contact
1704220
1704220
Phoenix Contact

Product Information

Current Rating:
13.5A
Voltage Rating:
630 V
Series:
COMBICON PT
Termination Method:
Screw
Connector System:
Wire to Board
Pitch:
5mm
Number of Contacts:
8
Type:
Wire to Board
HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M3
Wire Strip Length:
8mm
Type:
Plug, Female Sockets
Number of Positions:
8
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.5-4mm²
Plug Wire Entry:
180°
Insulation Height:
0.591" (15.00mm)
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
13.5A
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
300 V
Torque - Screw:
0.45-0.5 Nm (3.9-4.4 Lb-In)
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON PT
Positions Per Level:
8
Header Orientation:
-
Current - UL:
10 A
Pitch:
0.197" (5.00mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1704220. The product has a current rating of 13.5a. Moreover, the product has a nominal 630 v voltage rating. The product combicon pt, is a highly preferred choice for users. It allows screw termination method. It allows wire to board connector system. Moreover, the product is 5mm. The product contains 8 contacts. It comes in wire to board configuration. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa), nylon housing material. It is available in screw size of m3. The typical length of the wire strip is 8mm. It comes in plug, female sockets configuration. The product carries possible position value of 8. A 0.5-4mm² of wire gauge. It also a 180° plug wire entry. 0.591" (15.00mm) of insulation height. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 13.5a. While 12-26 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.45-0.5 nm (3.9-4.4 lb-in). The mating finish of the contact is tin. The nominal voltage of the product is 630 v. The product is available in free hanging (in-line) configuration. It has a classic green colour. It has 8 positions each level. The typical current includes 10 a. Moreover, the product is 0.197" (5.00mm). The product carries 1 levels. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
Mult Devices 04/Aug/2017(PCN Obsolescence/ EOL)
pdf icon
1704220(Datasheets)
