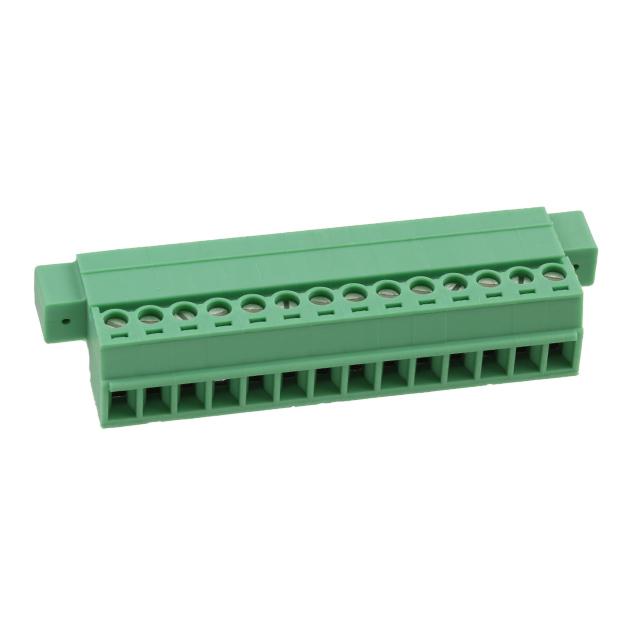

Phoenix Contact 1858154

1858154 Phoenix Contact
1858154
1858154
Phoenix Contact

Product Information

Current Rating:
8A
Mounting Type:
Cable Mount
Voltage Rating:
320 V
Series:
IMC 1.5/14-STGF-3.81
Colour:
Green
Material:
Polyamide, Tin
Pluggable Terminal Block Type:
Inverted Plug
Termination Method:
Screw
Number of Rows:
1
Pitch:
3.81mm
Number of Contacts:
14
Body Orientation:
Straight
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M2
Wire Strip Length:
7mm
Type:
Plug, Male Pins
Number of Positions:
14
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.14-1.5mm²
title:
1858154
Plug Wire Entry:
180°
Insulation Height:
0.437" (11.10mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
8A
Number of Levels:
1
Wire Gauge or Range - AWG:
14-30 AWG
Voltage - UL:
300 V
Torque - Screw:
0.22-0.25 Nm (1.9-2.2 Lb-In)
standardLeadTime:
7 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
320 V
Ingress Protection:
-
Features:
Mating Flange
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON IMC
Positions Per Level:
14
Packaging:
Bulk
Header Orientation:
-
Current - UL:
8 A
Pitch:
0.150" (3.81mm)
Contact Material:
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1858154. The product has a current rating of 8a. The product is available in cable mount configuration. Moreover, the product has a nominal 320 v voltage rating. The product imc 1.5/14-stgf-3.81, is a highly preferred choice for users. It has a decent green colour. The product is made from highly stable and reliable polyamide, tin. It allows screw termination method. It comes in 1 of rows. Moreover, the product is 3.81mm. The product contains 14 contacts. It has straight body orientation. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa), nylon housing material. It is available in screw size of m2. The typical length of the wire strip is 7mm. It comes in plug, male pins configuration. The product carries possible position value of 14. A 0.14-1.5mm² of wire gauge. It also a 180° plug wire entry. 0.437" (11.10mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. The phoenix contact's product offers user-desired applications. Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 8a. The product carries 1 levels. While 14-30 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.22-0.25 nm (1.9-2.2 lb-in). It has a long 7 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 320 v. The splendid features of the product include mating flange. The product is available in free hanging (in-line) configuration. It has a classic green colour. The product combicon imc, is a highly preferred choice for users. It has 14 positions each level. In addition, bulk is the available packaging type of the product. The typical current includes 8 a. Moreover, the product is 0.150" (3.81mm). The product is designated with the ear99 code number.
