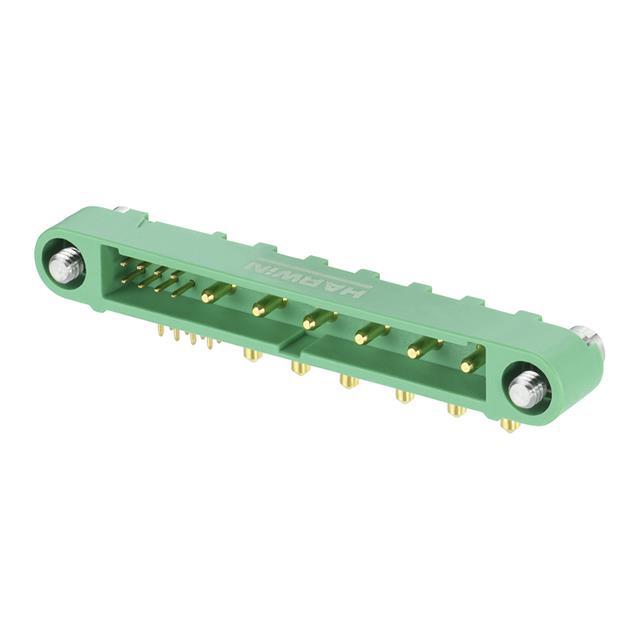

Harwin Inc. G125-MH124M3-02AD000P

G125-MH124M3-02AD000P Harwin Inc.
Harwin Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 150°C
Contact Finish Thickness - Post:
-
Number of Positions:
26 (24 + 2 Power)
Overall Contact Length:
-
title:
G125-MH124M3-02AD000P
Insulation Height:
0.208" (5.30mm)
Insulation Color:
Green
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Circular
Contact Finish Thickness - Mating:
-
Voltage Rating:
-
Row Spacing - Mating:
0.049" (1.25mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Screw Lock
Termination:
Solder
standardLeadTime:
8 Weeks
Current Rating (Amps):
2A, 10A
Contact Length - Post:
0.130" (3.30mm)
Pitch - Mating:
0.049" (1.25mm)
Ingress Protection:
-
Features:
Jackscrews, Mating Flange, Polarizing Key
Mounting Type:
Through Hole, Right Angle
Series:
Gecko MT Reverse Fix
Packaging:
Strip
Mated Stacking Heights:
-
Contact Type:
Male Pin
Contact Material:
Beryllium Copper, Phosphor Bronze
Insulation Material:
Polyamide (PA4T), Nylon 4T
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is G125-MH124M3-02AD000P. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -65°c ~ 150°c operating temperature range. The product carries possible position value of 26 (24 + 2 power). 0.208" (5.30mm) of insulation height. In addition, green is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. It carries 0.049" (1.25mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, screw lock is the Fastening Type of the product. The product features solder termination style. It has a long 8 weeks standard lead time. Additionally, the product's output is 2a, 10a. 0.130" (3.30mm) is the given possible contact length (post) values. It has 0.049" (1.25mm) of pitch-mating value. The splendid features of the product include jackscrews, mating flange, polarizing key. The product is available in through hole, right angle configuration. The product gecko mt reverse fix, is a highly preferred choice for users. In addition, strip is the available packaging type of the product. It has typical contact type of male pin. The product is made from sturdy beryllium copper, phosphor bronze materials. It has a robust polyamide (pa4t), nylon 4t insulation material. The product is designated with the ear99 code number.

pdf icon
G125-MH104M3-02AD000P(Product Brief)
pdf icon
G125-MH1XXM3-XXAD000P(Datasheets)
pdf icon
G125 Spec Sheet(Datasheets)
pdf icon
G125-1500005(Other Related Documents)
pdf icon
Z125-903(Other Related Documents)
