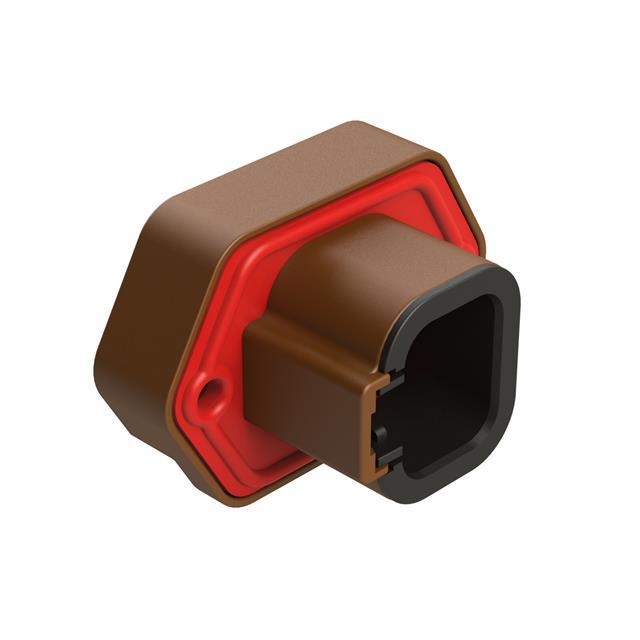

Amphenol Sine Systems Corp ATP15-4PD-BM04

ATP15-4PD-BM04 Amphenol Sine Systems Corp
Amphenol Sine Systems Corp

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4030
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Number of Positions:
4
Overall Contact Length:
1.520" (38.60mm)
Insulation Height:
1.339" (34.00mm)
Insulation Color:
Brown
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
-
Contact Shape:
Circular
Contact Finish Thickness - Mating:
-
Voltage Rating:
250V
Row Spacing - Mating:
0.402" (10.20mm)
Connector Type:
Receptacle
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Type:
Male Pin
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
18 Weeks
Current Rating (Amps):
25A
Contact Length - Post:
0.181" (4.60mm)
Pitch - Mating:
0.264" (6.70mm)
Ingress Protection:
IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Features:
Board Lock, Mounting Flange, Potting Wall, Sealed
Mounting Type:
Panel Mount, Through Hole
Series:
BoardLock™ ATP
Packaging:
Box
Insulation Material:
Thermoplastic
Contact Material:
Copper Alloy
Base Product Number:
ATP15-4PD
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol Sine Systems Corp. The manufacturer part number is ATP15-4PD-BM04. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4030. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 4. The product has a 1.520" (38.60mm) of overall contact lentgh. 1.339" (34.00mm) of insulation height. In addition, brown is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It has a typical circular shape. Moreover, the product has a nominal 250v voltage rating. It carries 0.402" (10.20mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is not applicable. It has typical contact type of male pin. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 18 weeks standard lead time. Additionally, the product's output is 25a. 0.181" (4.60mm) is the given possible contact length (post) values. It has 0.264" (6.70mm) of pitch-mating value. It is IP rated with ip68/ip69k - dust tight, water resistant, waterproof. The splendid features of the product include board lock, mounting flange, potting wall, sealed. The product is available in panel mount, through hole configuration. The product boardlock™ atp, is a highly preferred choice for users. In addition, box is the available packaging type of the product. It has a robust thermoplastic insulation material. The product is made from sturdy copper alloy materials. Moreover, it corresponds to atp15-4pd, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Material color chg 10/NOV/2023(PCN Design/Specification)
pdf icon
ATP15-4Px-BM0x Drawing(Product Drawings)
