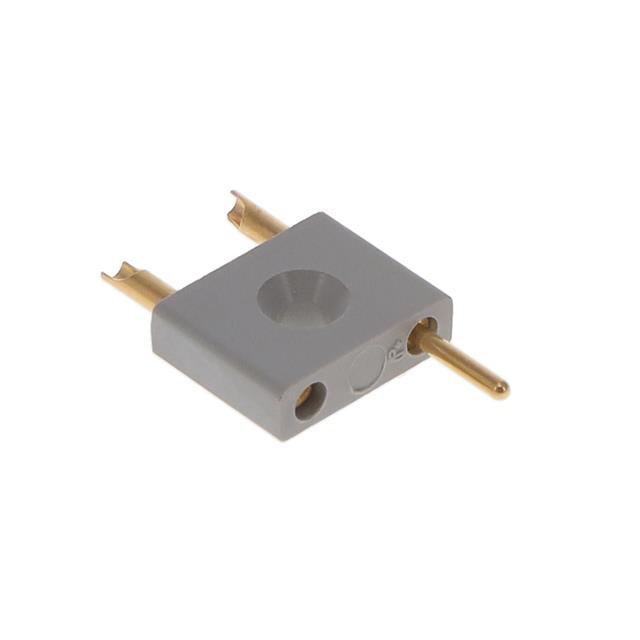

Amphenol Positronic GF1M1FBSCR

GF1M1FBSCR Amphenol Positronic
Amphenol Positronic

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
Flash
Number of Positions:
2
Overall Contact Length:
0.750" (19.05mm)
Insulation Height:
0.342" (8.69mm)
Voltage Rating:
300VAC
REACH Status:
REACH Unaffected
Shrouding:
Unshrouded
Applications:
-
Number of Rows:
1
Material Flammability Rating:
-
Insulation Color:
Gray
Contact Shape:
Circular
Mated Stacking Heights:
-
Package:
Bag
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.221" (5.61mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Finish Thickness - Mating:
Flash
Fastening Type:
Push-Pull
Termination:
Solder Cup
standardLeadTime:
14 Weeks
Current Rating (Amps):
7.5A
Contact Length - Post:
0.187" (4.75mm)
Pitch - Mating:
0.281" (7.14mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
GF
Contact Type:
Female Socket; Male Pin
Contact Material:
Copper Alloy
Insulation Material:
Diallyl Phthalate (DAP), Glass Filled
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol Positronic. The manufacturer part number is GF1M1FBSCR. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product has -55°c ~ 125°c operating temperature range. Additionally, it features flash of post thickness. The product carries possible position value of 2. The product has a 0.750" (19.05mm) of overall contact lentgh. 0.342" (8.69mm) of insulation height. Moreover, the product has a nominal 300vac voltage rating. In addition, it is reach unaffected. Furthermore, a bespoke product features unshrouded. It comes in 1 of rows. In addition, gray is the insulation color of the product. It has a typical circular shape. It is shipped in bag package . header Connector type offer robust functionality. It is 0.221" (5.61mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is not applicable. However, flash is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder cup termination style. It has a long 14 weeks standard lead time. Additionally, the product's output is 7.5a. 0.187" (4.75mm) is the given possible contact length (post) values. It has 0.281" (7.14mm) of pitch-mating value. The product is available in through hole configuration. The product gf, is a highly preferred choice for users. It has typical contact type of female socket; male pin. The product is made from sturdy copper alloy materials. It has a robust diallyl phthalate (dap), glass filled insulation material. The product is designated with the ear99 code number.
