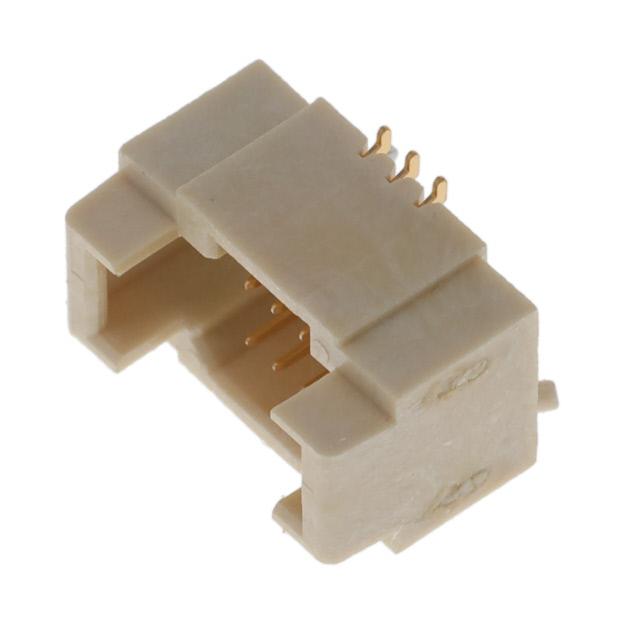

Samtec Inc. T1M-03-GF-DV-K

T1M-03-GF-DV-K Samtec Inc.
Samtec Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 85°C
Number of Positions:
6
Contact Finish - Post:
Gold
edacadModel:
T1M-03-GF-DV-K Models
Overall Contact Length:
-
Insulation Height:
0.268" (6.80mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/7805274
Contact Shape:
Square
Contact Finish Thickness - Mating:
3.00µin (0.076µm)
Voltage Rating:
250VAC, 353VDC
Row Spacing - Mating:
0.077" (1.96mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
3.3A per Contact
Contact Length - Post:
-
Pitch - Mating:
0.039" (1.00mm)
Ingress Protection:
-
Features:
Pick and Place
Mounting Type:
Surface Mount
Series:
Micro Mate™ T1M
Packaging:
Bulk
Insulation Material:
Liquid Crystal Polymer (LCP)
Contact Material:
Phosphor Bronze
Base Product Number:
T1M-03
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is T1M-03-GF-DV-K. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 85°c operating temperature range. The product carries possible position value of 6. It has possible gold contact post finishing. 0.268" (6.80mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 3.00µin (0.076µm) is the "Contact Finish Thickness - Mating" of the product. Moreover, the product has a nominal 250vac, 353vdc voltage rating. It carries 0.077" (1.96mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 6 weeks standard lead time. Additionally, the product's output is 3.3a per contact. It has 0.039" (1.00mm) of pitch-mating value. The splendid features of the product include pick and place. The product is available in surface mount configuration. The product micro mate™ t1m, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust liquid crystal polymer (lcp) insulation material. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to t1m-03, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Discrete Wire Terminal Strip, 1.00 mm Pitch(Datasheets)
pdf icon
T1M Series Other Related Documents 03(Other Related Documents)
pdf icon
Discrete Wire Terminal Strip, 1.00 mm Pitch(Other Related Documents)
