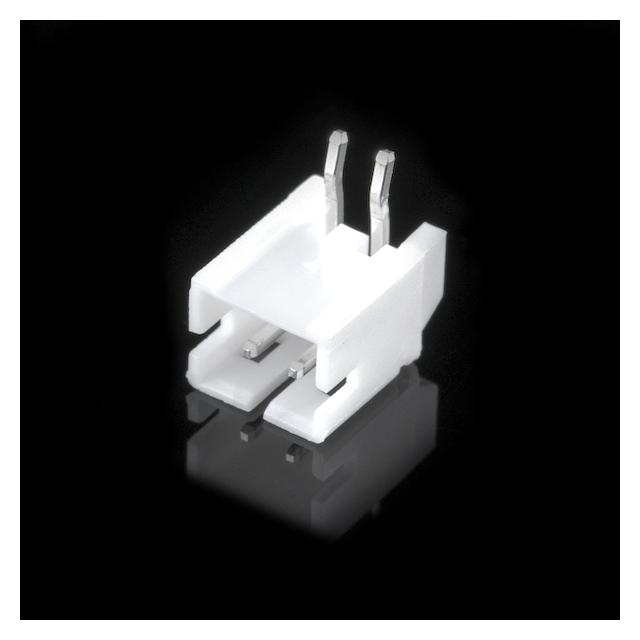

SparkFun Electronics PRT-09749

PRT-09749 SparkFun Electronics
SparkFun Electronics

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-25°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
2
Overall Contact Length:
-
title:
PRT-09749
Insulation Height:
0.197" (5.00mm)
Insulation Color:
White
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Contact Finish Thickness - Mating:
-
Voltage Rating:
100VAC/DC
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Detent Lock
Termination:
Kinked Pin, Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
1A
Contact Length - Post:
0.134" (3.40mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
-
Packaging:
Bulk
Mated Stacking Heights:
-
Contact Type:
Male Pin
Contact Material:
Brass
Insulation Material:
Polyamide (PA66), Nylon 6/6, Glass Filled
ECCN:
EAR99
Checking for live stock

This is manufactured by SparkFun Electronics. The manufacturer part number is PRT-09749. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 85°c operating temperature range. The product carries possible position value of 2. 0.197" (5.00mm) of insulation height. In addition, white is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 100vac/dc voltage rating. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, detent lock is the Fastening Type of the product. The product features kinked pin, solder termination style. It has a long 6 weeks standard lead time. Additionally, the product's output is 1a. 0.134" (3.40mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The product is available in through hole, right angle configuration. In addition, bulk is the available packaging type of the product. It has typical contact type of male pin. The product is made from sturdy brass materials. It has a robust polyamide (pa66), nylon 6/6, glass filled insulation material. The product is designated with the ear99 code number.
