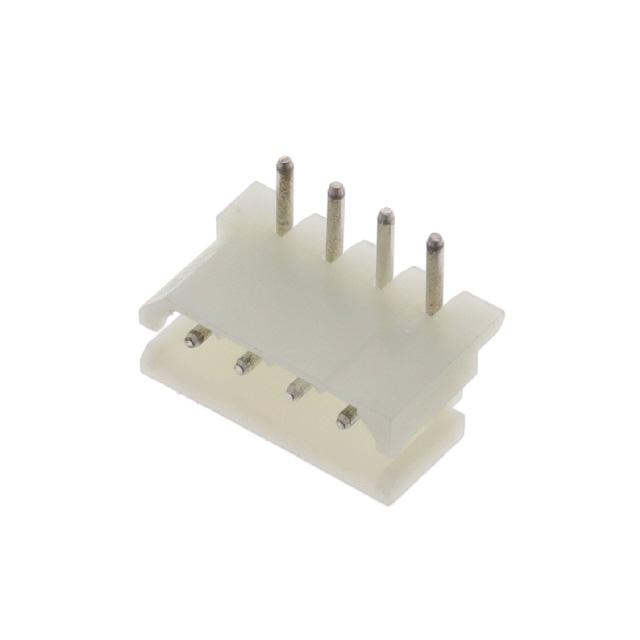

Cvilux USA CI2504P1H00-NH

CI2504P1H00-NH Cvilux USA
Cvilux USA

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-25°C ~ 85°C
Contact Finish Thickness - Post:
120.0µin (3.05µm)
Number of Positions:
4
Overall Contact Length:
-
Insulation Height:
0.193" (4.90mm)
Voltage Rating:
50VAC
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Insulation Color:
Natural
Contact Shape:
Circular
Mated Stacking Heights:
-
Package:
Bag
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
120.0µin (3.05µm)
Fastening Type:
Detent Lock
Termination:
Solder
standardLeadTime:
13 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.134" (3.40mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
-
Contact Type:
Male Pin
Contact Material:
Brass
Insulation Material:
Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
ECCN:
EAR99
Checking for live stock

This is manufactured by Cvilux USA. The manufacturer part number is CI2504P1H00-NH. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 85°c operating temperature range. Additionally, it features 120.0µin (3.05µm) of post thickness. The product carries possible position value of 4. 0.193" (4.90mm) of insulation height. Moreover, the product has a nominal 50vac voltage rating. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical circular shape. It is shipped in bag package . header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 120.0µin (3.05µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. It has a long 13 weeks standard lead time. Additionally, the product's output is 3a. 0.134" (3.40mm) is the given possible contact length (post) values. It has 0.098" (2.50mm) of pitch-mating value. The product is available in through hole, right angle configuration. It has typical contact type of male pin. The product is made from sturdy brass materials. It has a robust polyamide (pa6t), nylon 6t, glass filled, halogen free insulation material. The product is designated with the ear99 code number.
