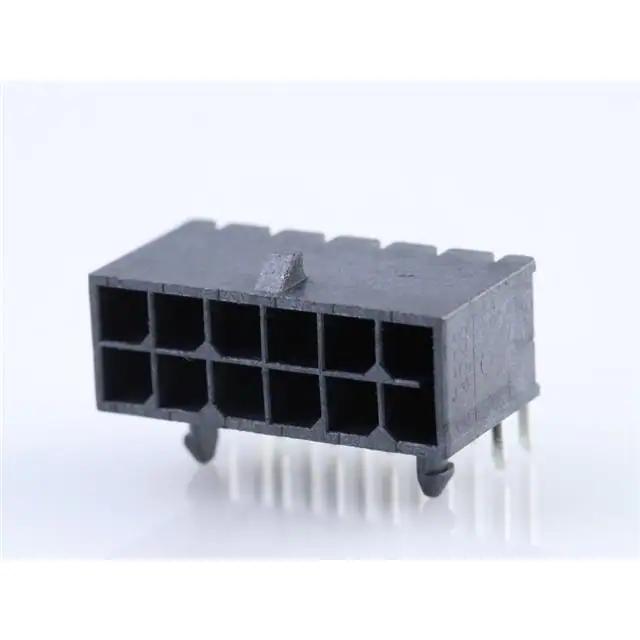

Molex, 212528-1200, Board-to-Cable/Wire PCB Header, 2 Way, 2 Row, Right Angle, Micro-Fit+, Locking Ramp

212528-1200 Molex, , Board-to-Cable/Wire PCB Header, 2 Way, 2 Row, Right Angle, Micro-Fit+, Locking Ramp
212528-1200
Molex

Product Information

The 212528-1200, Molex, is a compact yet reliable board-to-cable PCB header providing robust connections between PCBs and various compatible cables/wires.



Shrouded/Unshrouded:
Shrouded
Mounting Type:
Through Hole
Series:
Micro-Fit+
Body Orientation:
Right Angle
Number of Rows:
2
Pitch:
3.0mm
Number of Contacts:
12
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
12
Overall Contact Length:
-
Insulation Height:
0.291" (7.40mm)
Voltage Rating:
600VAC/DC
REACH Status:
REACH info available upon request
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Package:
Box
Row Spacing - Mating:
0.118" (3.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
Vendor Undefined
Contact Finish Thickness - Mating:
-
Fastening Type:
Locking Ramp
Termination:
Solder
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.125" (3.18mm)
Pitch - Mating:
0.118" (3.00mm)
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Through Hole, Right Angle
Series:
Micro-Fit+ 212528
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
ECCN:
EAR99
RoHs Compliant
Checking for live stock

The Molex 212528-1200 is a Board-to-Cable/Wire PCB Header with headers that provide a reliable connection between a printed circuit board (PCB) and a cable or wire. It features a compact size, dual-row configuration, and excellent electrical and environmental performance. This particular model is part of the Molex 212528 series, which offers a variety of pitch sizes and configurations to meet different application requirements.

Key Features of Molex 212528-1200 is a Board-to-Cable/Wire PCB Header:

  • One of the key features of the 212528-1200 header is its compact size, which makes it ideal for use in space-constrained applications.
  • With a pitch size of just 1.25mm, this header can connect a range of devices, including smartphones, tablets, and other mobile devices.
  • The header is designed with a dual-row, surface-mount configuration, which ensures a secure and reliable connection between the PCB and the cable or wire.
  • The headers are made of high-quality materials, including durable thermoplastic housing and gold-plated contacts, which provide excellent conductivity and corrosion resistance.

Performance Features:

In terms of electrical performance, the 212528-1200 header offers a current rating of up to 1.5A per contact, with a voltage rating of 125V AC/DC. The headers are also rated for operation in temperatures ranging from -40°C to 105°C, making them suitable for various applications.

Typical Uses of Molex 212528-1200 is a Board-to-Cable/Wire PCB Header:

  • The 212528-1200 header is also designed to withstand various environmental conditions, including high temperatures and humidity. This makes it ideal for industrial and automotive applications, where reliability and durability are critical.
  • The header is also designed with a polarizing key, ensuring the cable or wire is correctly aligned with the PCB. This helps prevent misalignment and damage to the header and provides a reliable and secure connection.
