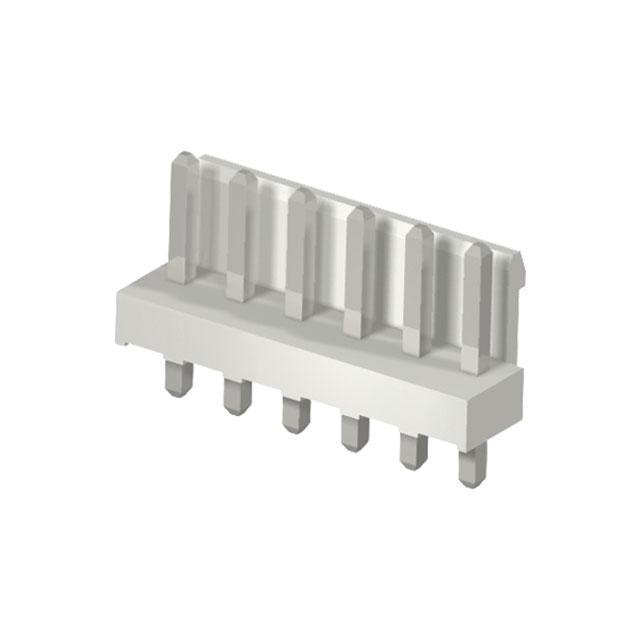

Cvilux USA CI5202P1V00-LF

CI5202P1V00-LF Cvilux USA
Cvilux USA

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-25°C ~ 105°C
Contact Finish Thickness - Post:
120.0µin (3.05µm)
Number of Positions:
2
Overall Contact Length:
0.575" (14.60mm)
Insulation Height:
0.370" (9.40mm)
Voltage Rating:
250VAC
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 1 Wall
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA46), Nylon 4/6
Package:
Bag
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.303" (7.70mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
120.0µin (3.05µm)
Fastening Type:
Locking Ramp
Termination:
Solder
Current Rating (Amps):
7A
Contact Length - Post:
0.146" (3.70mm)
Pitch - Mating:
0.156" (3.96mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
CI52
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
CI5202P1
ECCN:
EAR99
Checking for live stock

This is manufactured by Cvilux USA. The manufacturer part number is CI5202P1V00-LF. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 105°c operating temperature range. Additionally, it features 120.0µin (3.05µm) of post thickness. The product carries possible position value of 2. The product has a 0.575" (14.60mm) of overall contact lentgh. 0.370" (9.40mm) of insulation height. Moreover, the product has a nominal 250vac voltage rating. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 1 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa46), nylon 4/6 insulation material. It is shipped in bag package . header Connector type offer robust functionality. It is 0.303" (7.70mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 120.0µin (3.05µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 7a. 0.146" (3.70mm) is the given possible contact length (post) values. It has 0.156" (3.96mm) of pitch-mating value. The product is available in through hole configuration. The product ci52, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to ci5202p1, a base product number of the product. The product is designated with the ear99 code number.
