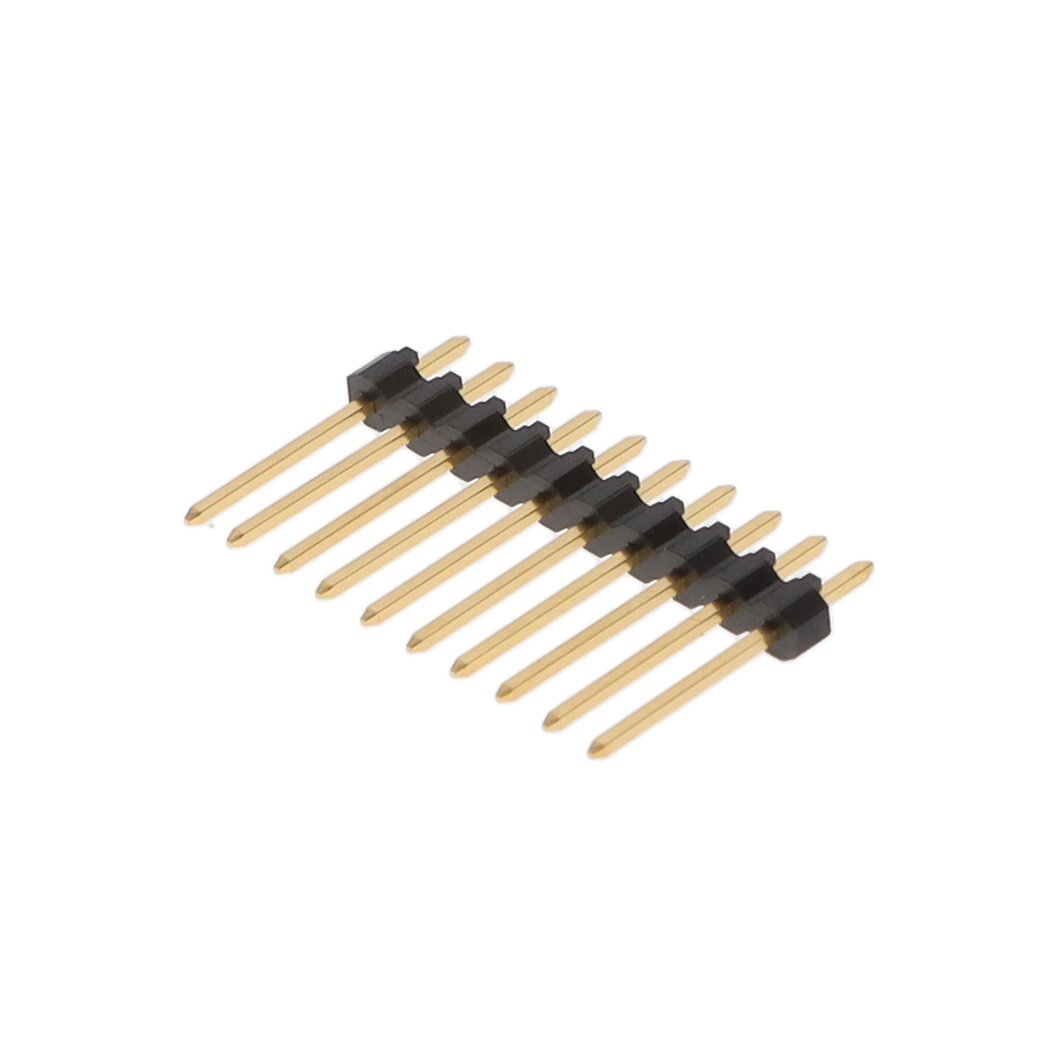

Hirose Electric Co Ltd MDF7-10P-2.54DSA(96)

MDF7-10P-2-54DSA-96- Hirose Electric Co Ltd MDF7-10P-2.54DSA(96)
Hirose Electric Co Ltd

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
-
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-35°C ~ 85°C
Number of Positions:
10
Overall Contact Length:
0.612" (15.54mm)
Insulation Height:
0.100" (2.54mm)
Insulation Color:
Black
Shrouding:
Unshrouded
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Contact Finish Thickness - Mating:
-
Voltage Rating:
250VAC
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.394" (10.00mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
12 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.118" (3.00mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
MDF7
Packaging:
Bag
Insulation Material:
Polybutylene Terephthalate (PBT)
ECCN:
EAR99
Base Product Number:
MDF7
Contact Material:
Brass
Checking for live stock

This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is MDF7-10P-2.54DSA(96). It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -35°c ~ 85°c operating temperature range. The product carries possible position value of 10. The product has a 0.612" (15.54mm) of overall contact lentgh. 0.100" (2.54mm) of insulation height. In addition, black is the insulation color of the product. Furthermore, a bespoke product features unshrouded. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 250vac voltage rating. header Connector type offer robust functionality. It is 0.394" (10.00mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 12 weeks standard lead time. Additionally, the product's output is 3a. 0.118" (3.00mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product mdf7, is a highly preferred choice for users. In addition, bag is the available packaging type of the product. It has a robust polybutylene terephthalate (pbt) insulation material. The product is designated with the ear99 code number. Moreover, it corresponds to mdf7, a base product number of the product. The product is made from sturdy brass materials.

pdf icon
Mult Dev Supplier Add 2/May/2023(PCN Assembly/Origin)
