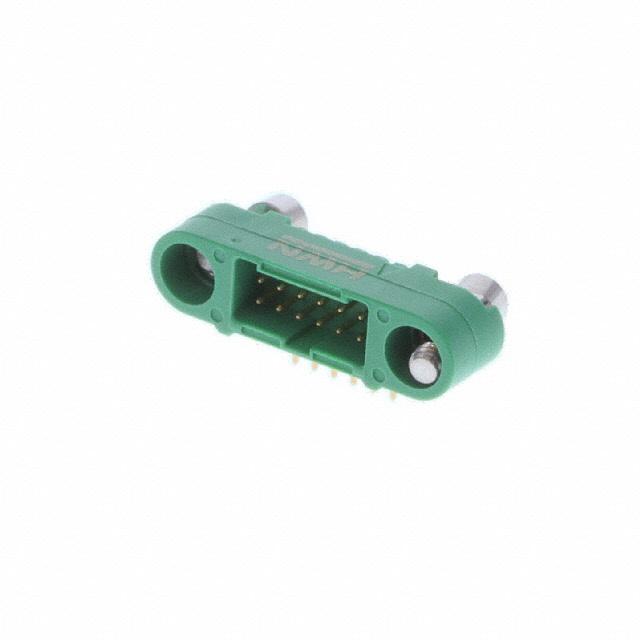

Harwin Inc. G125-MH11205M3P

G125-MH11205M3P Harwin Inc.
Harwin Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 150°C
Contact Finish Thickness - Post:
8.00µin (0.203µm)
Number of Positions:
12
Overall Contact Length:
-
Insulation Height:
0.209" (5.30mm)
Voltage Rating:
450V
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Green
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Package:
Strip
Row Spacing - Mating:
0.049" (1.25mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
8.00µin (0.203µm)
Fastening Type:
Screw Lock
Termination:
Solder
standardLeadTime:
10 Weeks
Current Rating (Amps):
2A
Contact Length - Post:
0.130" (3.30mm)
Pitch - Mating:
0.049" (1.25mm)
Ingress Protection:
-
Features:
Jackscrews, Mating Flange, Pick and Place, Polarizing Key
Mounting Type:
Through Hole, Right Angle
Series:
Gecko SL
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
G125-MH1
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is G125-MH11205M3P. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -65°c ~ 150°c operating temperature range. Additionally, it features 8.00µin (0.203µm) of post thickness. The product carries possible position value of 12. 0.209" (5.30mm) of insulation height. Moreover, the product has a nominal 450v voltage rating. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, green is the insulation color of the product. It has a typical circular shape. It has a robust polyamide (pa4t), nylon 4t, glass filled, halogen free insulation material. It is shipped in strip package . It carries 0.049" (1.25mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 8.00µin (0.203µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, screw lock is the Fastening Type of the product. The product features solder termination style. It has a long 10 weeks standard lead time. Additionally, the product's output is 2a. 0.130" (3.30mm) is the given possible contact length (post) values. It has 0.049" (1.25mm) of pitch-mating value. The splendid features of the product include jackscrews, mating flange, pick and place, polarizing key. The product is available in through hole, right angle configuration. The product gecko sl, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to g125-mh1, a base product number of the product. The product is designated with the ear99 code number.
