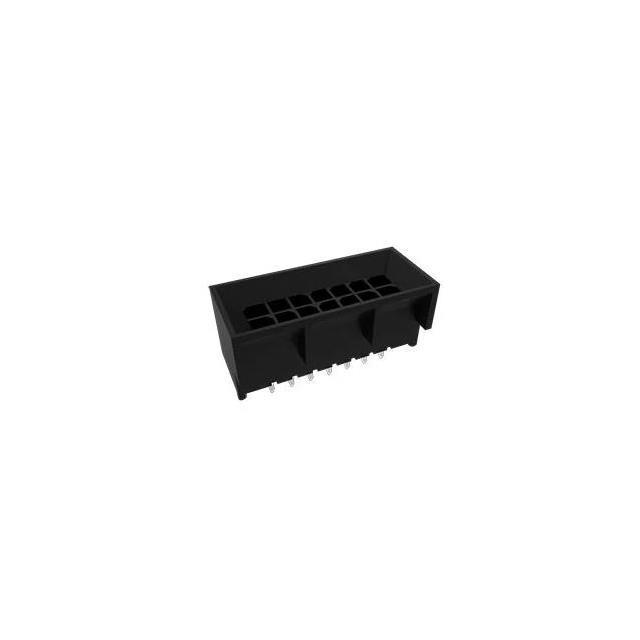

Amphenol ICC (FCI) 10138980-1641LF

10138980-1641LF Amphenol ICC (FCI)
Amphenol ICC (FCI)

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
Operating Temperature:
-40°C ~ 150°C
Contact Finish Thickness - Post:
-
Number of Positions:
16
Contact Finish - Post:
-
edacadModel:
10138980-1641LF Models
Overall Contact Length:
-
Insulation Height:
0.457" (11.60mm)
Insulation Color:
Black
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/11600795
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
600V
Row Spacing - Mating:
0.118" (3.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
-
Termination:
Kinked Pin, Solder
standardLeadTime:
12 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.130" (3.30mm)
Pitch - Mating:
0.118" (3.00mm)
Ingress Protection:
-
Features:
Board Guide, Glow Wire Compliant
Mounting Type:
Through Hole
Series:
Minitek® Pwr 3.0
Packaging:
Tray
Insulation Material:
Liquid Crystal Polymer (LCP)
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
10138980
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol ICC (FCI). The manufacturer part number is 10138980-1641LF. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product has -40°c ~ 150°c operating temperature range. The product carries possible position value of 16. 0.457" (11.60mm) of insulation height. In addition, black is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 600v voltage rating. It carries 0.118" (3.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. The product features kinked pin, solder termination style. It has a long 12 weeks standard lead time. Additionally, the product's output is varies by wire gauge. 0.130" (3.30mm) is the given possible contact length (post) values. It has 0.118" (3.00mm) of pitch-mating value. The splendid features of the product include board guide, glow wire compliant. The product is available in through hole configuration. The product minitek® pwr 3.0, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust liquid crystal polymer (lcp) insulation material. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 10138980, a base product number of the product. The product is designated with the ear99 code number.
