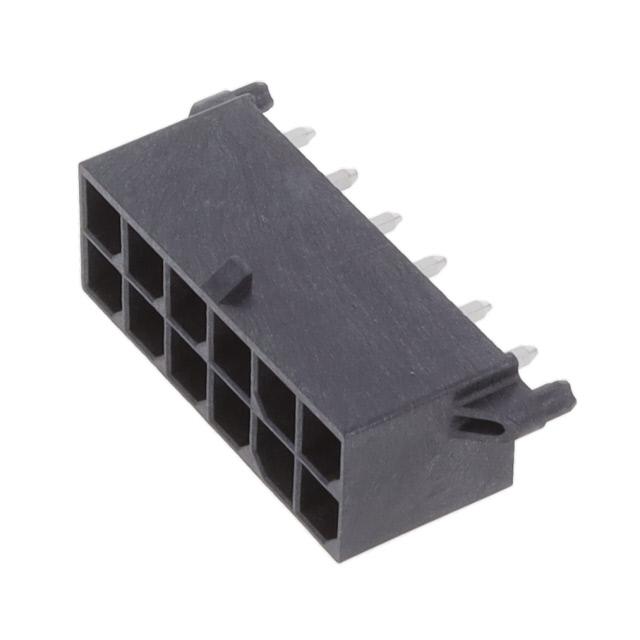

Amphenol ICC (FCI) 10142708-12100LF

10142708-12100LF Amphenol ICC (FCI)
Amphenol ICC (FCI)

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-40°C ~ 105°C
Number of Positions:
12
Overall Contact Length:
-
Insulation Height:
0.583" (14.80mm)
Insulation Color:
Black
REACH Status:
REACH Affected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Voltage Rating:
600VAC/DC
Row Spacing - Mating:
0.224" (5.70mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
15 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.147" (3.73mm)
Pitch - Mating:
0.224" (5.70mm)
Ingress Protection:
-
Features:
Board Guide, Glow Wire Compliant
Mounting Type:
Through Hole
Series:
Minitek® Pwr 5.7
Packaging:
Tray
Insulation Material:
Liquid Crystal Polymer (LCP), Halogen Free
Contact Material:
Copper Alloy
Base Product Number:
10142708
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol ICC (FCI). The manufacturer part number is 10142708-12100LF. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 12. 0.583" (14.80mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach affected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Moreover, the product has a nominal 600vac/dc voltage rating. It carries 0.224" (5.70mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 15 weeks standard lead time. 0.147" (3.73mm) is the given possible contact length (post) values. It has 0.224" (5.70mm) of pitch-mating value. The splendid features of the product include board guide, glow wire compliant. The product is available in through hole configuration. The product minitek® pwr 5.7, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust liquid crystal polymer (lcp), halogen free insulation material. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 10142708, a base product number of the product. The product is designated with the ear99 code number.
