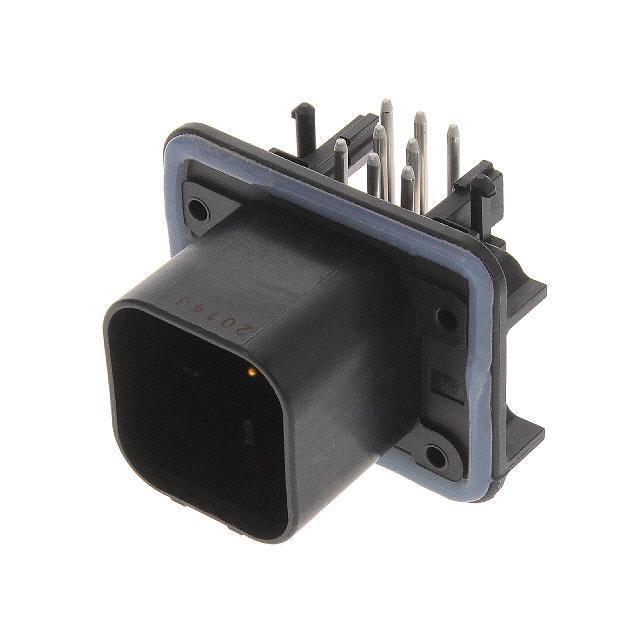

TE Connectivity Deutsch Connectors 1-776280-1

1-776280-1 TE Connectivity Deutsch Connectors
TE Connectivity Deutsch Connectors

Product Information

Contact Finish - Mating:
Gold-Palladium
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
8
Contact Finish - Post:
-
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
-
Voltage Rating:
250VAC
REACH Status:
REACH Affected
edacadModel:
1-776280-1 Models
Applications:
Automotive, Industrial
Number of Rows:
3
Material Flammability Rating:
-
edacadModelUrl:
/en/models/5428578
Insulation Color:
Black
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
Package:
Tray
Row Spacing - Mating:
0.157" (4.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Locking Ramp
Termination:
Solder
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
-
Pitch - Mating:
0.157" (4.00mm)
Ingress Protection:
-
Features:
Board Guide, Sealed
Mounting Type:
Panel Mount, Through Hole, Right Angle
Series:
AMPSEAL
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
776280
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Deutsch Connectors. The manufacturer part number is 1-776280-1. It has nice contact finishing of gold-palladium. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 125°c operating temperature range. The product carries possible position value of 8. Furthermore, a bespoke product features shrouded - 4 wall. Moreover, the product has a nominal 250vac voltage rating. In addition, it is reach affected. The product is widely employed in automotive, industrial. It comes in 3 of rows. In addition, black is the insulation color of the product. It has a typical circular shape. It has a robust polybutylene terephthalate (pbt), glass filled insulation material. It is shipped in tray package . It carries 0.157" (4.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is varies by wire gauge. It has 0.157" (4.00mm) of pitch-mating value. The splendid features of the product include board guide, sealed. The product is available in panel mount, through hole, right angle configuration. The product ampseal, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 776280, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Additional molding and plating capabilities 17/APR/2023(PCN Assembly/Origin)
pdf icon
y-7762yy-y design chg 12/MAR/2021(PCN Design/Specification)
pdf icon
1-77yyyy-(y) standardize plating process 17/FEB/2020(PCN Design/Specification)
pdf icon
1-776280-1(Datasheets)
