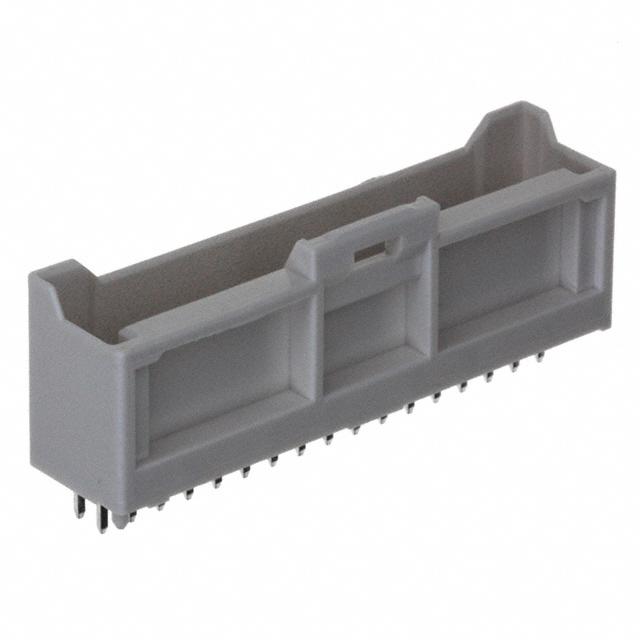

Molex 5016453420

5016453420 Molex
5016453420
Molex

Product Information

Shrouded/Unshrouded:
Shrouded
Series:
iGrid
Body Orientation:
Vertical
Number of Rows:
2
Pitch:
2.0mm
Number of Contacts:
34
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
34
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.472" (12.00mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
5016453420 Models
Applications:
Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1787785
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA66), Nylon 6/6, Glass Filled
Package:
Tray
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
14 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.126" (3.20mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole
Series:
iGrid 501645
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
501645
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 5016453420. It is supplied as shrouded. The product igrid, is a highly preferred choice for users. It has vertical body orientation. It comes in 2 of rows. Moreover, the product is 2.0mm. The product contains 34 contacts. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 34. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.472" (12.00mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial, medical, telecommunications. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa66), nylon 6/6, glass filled insulation material. It is shipped in tray package . It carries 0.079" (2.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 14 weeks standard lead time. 0.126" (3.20mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole configuration. The product igrid 501645, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 501645, a base product number of the product. The product is designated with the ear99 code number.
