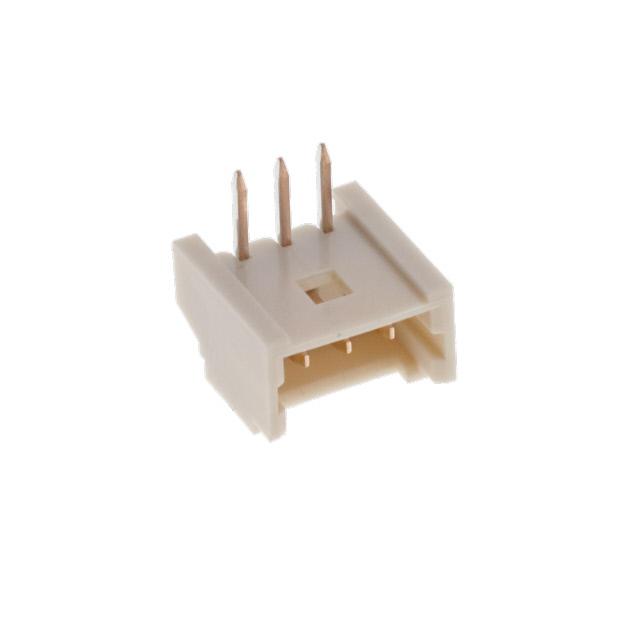

Molex 0530480350

0530480350 Molex
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
39.4µin (1.00µm)
Number of Positions:
3
Contact Finish - Post:
Tin
edacadModel:
0530480350 Models
Overall Contact Length:
-
Insulation Height:
0.138" (3.50mm)
Insulation Color:
Natural
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive, General Purpose, Industrial, Medical
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/10125766
Contact Shape:
Rectangular
Mated Stacking Heights:
-
Voltage Rating:
125V
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Fastening Type:
Detent Lock
Termination:
Solder
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.091" (2.30mm)
Pitch - Mating:
0.049" (1.25mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
PicoBlade 53048
Packaging:
Tray
Insulation Material:
Polyamide (PA), Nylon
Contact Type:
Male Blade
Contact Material:
Phosphor Bronze
Base Product Number:
053048
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0530480350. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 39.4µin (1.00µm) of post thickness. The product carries possible position value of 3. It has possible tin contact post finishing. 0.138" (3.50mm) of insulation height. In addition, natural is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive, general purpose, industrial, medical. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical rectangular shape. Moreover, the product has a nominal 125v voltage rating. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is varies by wire gauge. 0.091" (2.30mm) is the given possible contact length (post) values. It has 0.049" (1.25mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product picoblade 53048, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust polyamide (pa), nylon insulation material. It has typical contact type of male blade. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 053048, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
05304yy50 Location 30/Nov/2023(PCN Assembly/Origin)
pdf icon
Mult Devs EOL/Obs 27/Sep/2023(PCN Obsolescence/ EOL)
pdf icon
0530480350 Datasheet(Datasheets)
pdf icon
510210000 Prod Spec(Datasheets)
pdf icon
0530480350 Drawing(Product Drawings)
