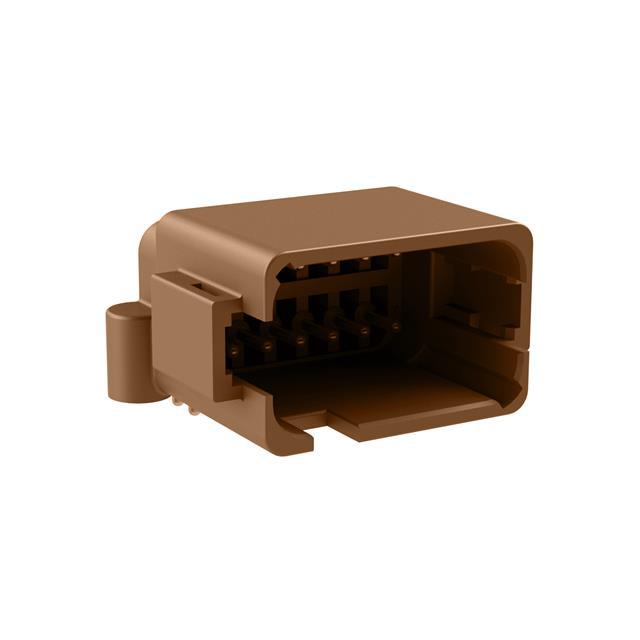

Amphenol Sine Systems Corp ATF13-12PD-BM13

ATF13-12PD-BM13 Amphenol Sine Systems Corp
Amphenol Sine Systems Corp

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
12
Contact Finish - Post:
Tin
edacadModel:
ATF13-12PD-BM13 Models
Overall Contact Length:
-
Insulation Height:
0.874" (22.20mm)
Insulation Color:
Brown
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive, General Purpose, Industrial
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/10328857
Contact Shape:
Circular
Mated Stacking Heights:
-
Voltage Rating:
250VDC
Row Spacing - Mating:
-
Connector Type:
Receptacle
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
18 Weeks
Current Rating (Amps):
13A
Contact Length - Post:
0.120" (3.05mm)
Pitch - Mating:
0.174" (4.42mm)
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Mounting Flange
Mounting Type:
Through Hole, Right Angle
Series:
BoardLock™ AT
Packaging:
Bulk
Insulation Material:
Thermoplastic
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
ATF13
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol Sine Systems Corp. The manufacturer part number is ATF13-12PD-BM13. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 12. It has possible tin contact post finishing. 0.874" (22.20mm) of insulation height. In addition, brown is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive, general purpose, industrial. It comes in 2 of rows. It has a typical circular shape. Moreover, the product has a nominal 250vdc voltage rating. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 18 weeks standard lead time. Additionally, the product's output is 13a. 0.120" (3.05mm) is the given possible contact length (post) values. It has 0.174" (4.42mm) of pitch-mating value. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include mounting flange. The product is available in through hole, right angle configuration. The product boardlock™ at, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust thermoplastic insulation material. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to atf13, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
ATF13-12PX-BM1X(Datasheets)
pdf icon
BoardLock Family(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search ATF13-12PD-BM13 on website for other similar products.
We accept all major payment methods for all products including ET18389900. Please check your shopping cart at the time of order.
You can order Amphenol Sine Systems Corp brand products with ATF13-12PD-BM13 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Amphenol Sine Systems Corp ATF13-12PD-BM13. You can also check on our website or by contacting our customer support team for further order details on Amphenol Sine Systems Corp ATF13-12PD-BM13.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18389900 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Amphenol Sine Systems Corp" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18389900.
Yes. We ship ATF13-12PD-BM13 Internationally to many countries around the world.
