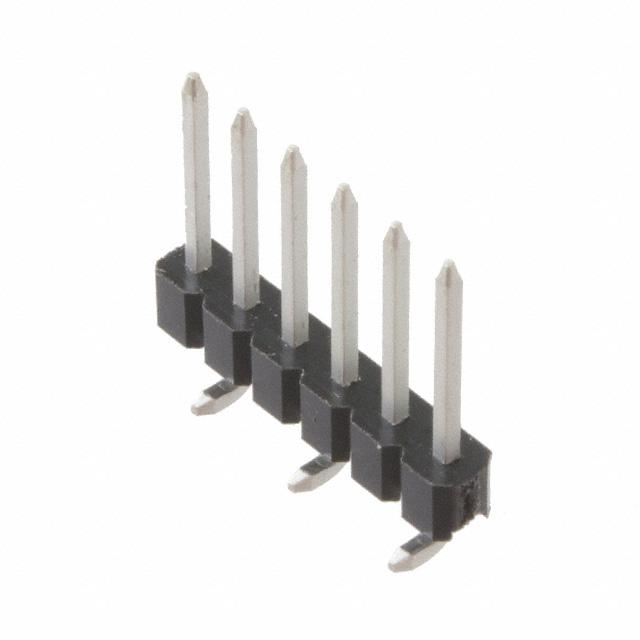

Molex 0878980666

0878980666 Molex
0878980666
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
78.7µin (2.00µm)
Number of Positions:
6
Contact Finish - Post:
Tin
edacadModel:
0878980666 Models
Overall Contact Length:
-
Insulation Height:
0.098" (2.50mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Unshrouded
Applications:
Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/7652768
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
250V
Row Spacing - Mating:
-
Connector Type:
Header, Breakaway
Contact Length - Mating:
0.320" (8.13mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
15 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
-
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
C-Grid SL 87898
Packaging:
Tube
Insulation Material:
Polyamide (PA), Nylon, Glass Filled
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
087898
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0878980666. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 105°c operating temperature range. Additionally, it features 78.7µin (2.00µm) of post thickness. The product carries possible position value of 6. It has possible tin contact post finishing. 0.098" (2.50mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features unshrouded. The product is widely employed in automotive, general purpose, lighting, medical, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 250v voltage rating. header, breakaway Connector type offer robust functionality. It is 0.320" (8.13mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 15 weeks standard lead time. Additionally, the product's output is 3a. It has 0.100" (2.54mm) of pitch-mating value. The product is available in surface mount configuration. The product c-grid sl 87898, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. It has a robust polyamide (pa), nylon, glass filled insulation material. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 087898, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
0878980666(Datasheets)
pdf icon
0878980666(Product Drawings)
