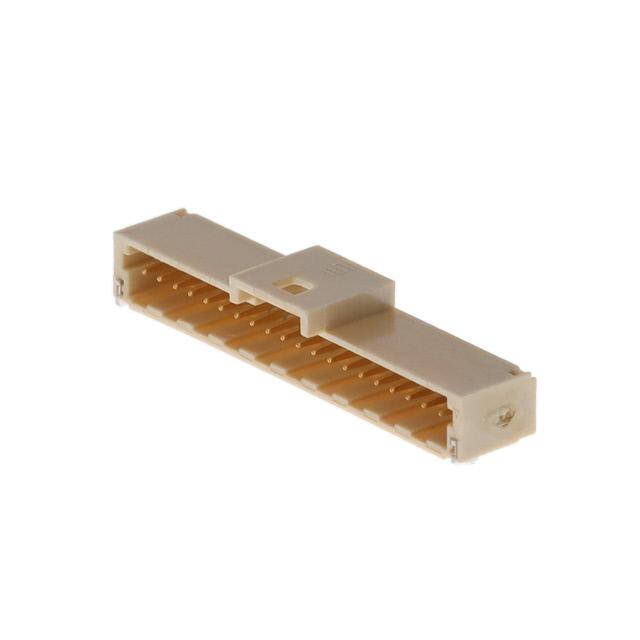

Samtec Inc. T1M-20-F-SH-L

T1M-20-F-SH-L Samtec Inc.
Samtec Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 85°C
Number of Positions:
20
Overall Contact Length:
-
Insulation Height:
0.181" (4.60mm)
Insulation Color:
Natural
Shrouding:
Shrouded - 4 Wall
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Contact Finish Thickness - Mating:
3.00µin (0.076µm)
Voltage Rating:
250VAC, 353VDC
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
3.3A per Contact
Contact Length - Post:
-
Pitch - Mating:
0.039" (1.00mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount, Right Angle
Series:
Micro Mate™ T1M
Packaging:
Tape & Reel (TR)
Insulation Material:
Liquid Crystal Polymer (LCP)
ECCN:
EAR99
Base Product Number:
T1M-20
Contact Material:
Phosphor Bronze
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is T1M-20-F-SH-L. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 85°c operating temperature range. The product carries possible position value of 20. 0.181" (4.60mm) of insulation height. In addition, natural is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 3.00µin (0.076µm) is the "Contact Finish Thickness - Mating" of the product. Moreover, the product has a nominal 250vac, 353vdc voltage rating. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 6 weeks standard lead time. Additionally, the product's output is 3.3a per contact. It has 0.039" (1.00mm) of pitch-mating value. The product is available in surface mount, right angle configuration. The product micro mate™ t1m, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust liquid crystal polymer (lcp) insulation material. The product is designated with the ear99 code number. Moreover, it corresponds to t1m-20, a base product number of the product. The product is made from sturdy phosphor bronze materials.
