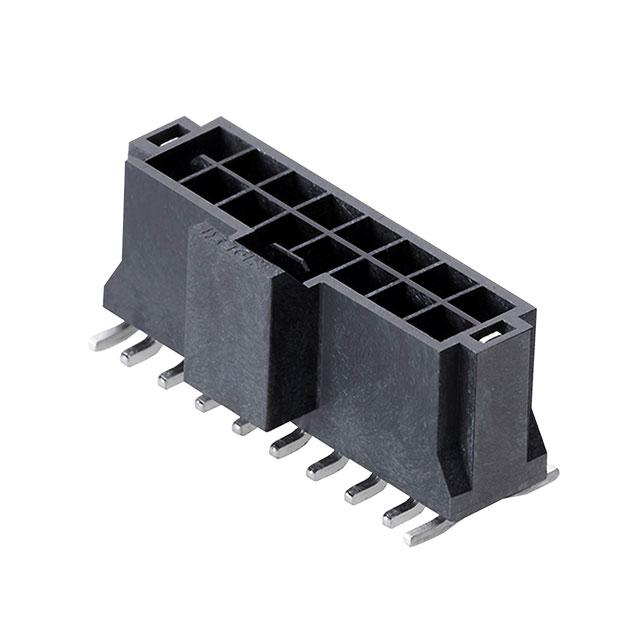

Molex 1054291116

1054291116 Molex
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
30.0µin (0.76µm)
Number of Positions:
16
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.382" (9.70mm)
Voltage Rating:
250VAC
edacadModel:
1054291116 Models
Applications:
Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/9958225
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Tape & Reel (TR)
Row Spacing - Mating:
0.098" (2.50mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
13 Weeks
Current Rating (Amps):
4A
Contact Length - Post:
-
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
Pick and Place, Solder Retention
Mounting Type:
Surface Mount
Series:
Nano-Fit 105429
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
105429
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 1054291116. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 30.0µin (0.76µm) of post thickness. The product carries possible position value of 16. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.382" (9.70mm) of insulation height. Moreover, the product has a nominal 250vac voltage rating. The product is widely employed in automotive, general purpose, industrial, medical, military, telecommunications. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust liquid crystal polymer (lcp) insulation material. It is shipped in tape & reel (tr) package . It carries 0.098" (2.50mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 13 weeks standard lead time. Additionally, the product's output is 4a. It has 0.098" (2.50mm) of pitch-mating value. The splendid features of the product include pick and place, solder retention. The product is available in surface mount configuration. The product nano-fit 105429, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 105429, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Devs Supplier 28/Feb/2022(PCN Assembly/Origin)
pdf icon
105405-100 Application Spec(Datasheets)
pdf icon
1054291000 Pkg Spec(Datasheets)
pdf icon
1054291116 Drawing(Product Drawings)
