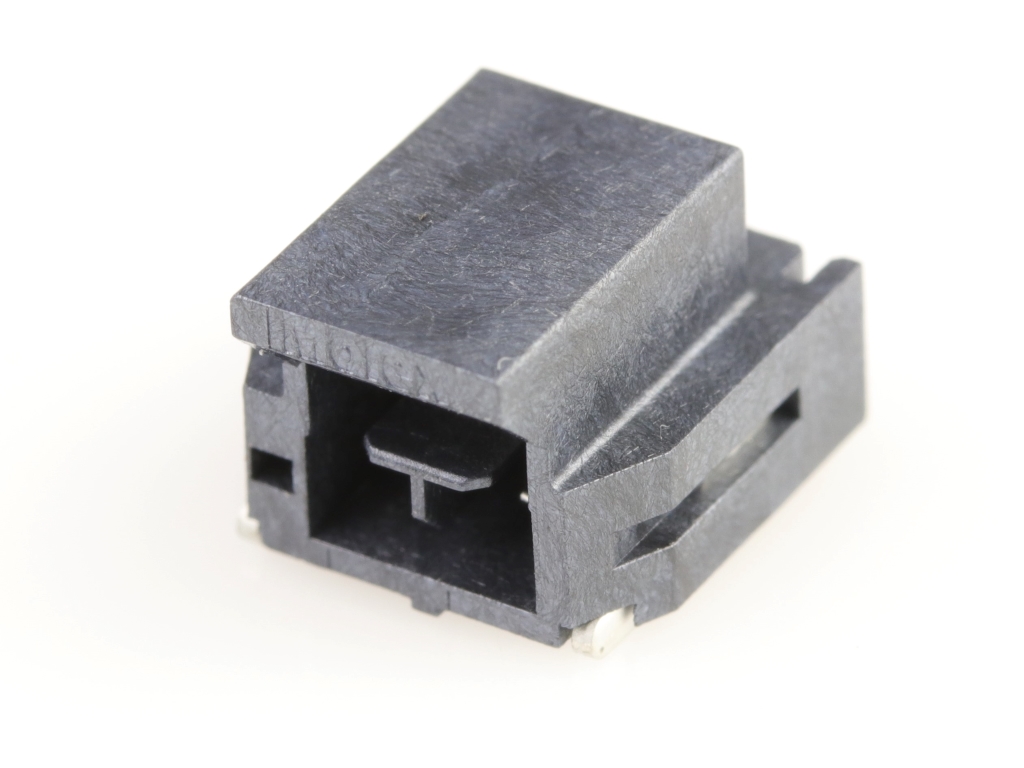

Molex 1054301102

1054301102 Molex
1054301102
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
30.0µin (0.76µm)
Number of Positions:
2
Contact Finish - Post:
Tin
edacadModel:
1054301102 Models
Overall Contact Length:
-
title:
1054301102
Insulation Height:
0.275" (6.99mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/9959376
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
250VAC
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
-
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
Nano-Fit 105430
Packaging:
Tape & Reel (TR)
Insulation Material:
Liquid Crystal Polymer (LCP)
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
105430
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 1054301102. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 30.0µin (0.76µm) of post thickness. The product carries possible position value of 2. It has possible tin contact post finishing. 0.275" (6.99mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive, general purpose, industrial, medical, military, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 250vac voltage rating. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. Additionally, the product's output is varies by wire gauge. It has 0.098" (2.50mm) of pitch-mating value. The splendid features of the product include solder retention. The product is available in surface mount, right angle configuration. The product nano-fit 105430, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust liquid crystal polymer (lcp) insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 105430, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Devs Supplier 28/Feb/2022(PCN Assembly/Origin)
pdf icon
Nano-Fit Power Connector Overview(Datasheets)
pdf icon
1054311102 Datasheet(Datasheets)
pdf icon
1054301102 Drawing(Product Drawings)
