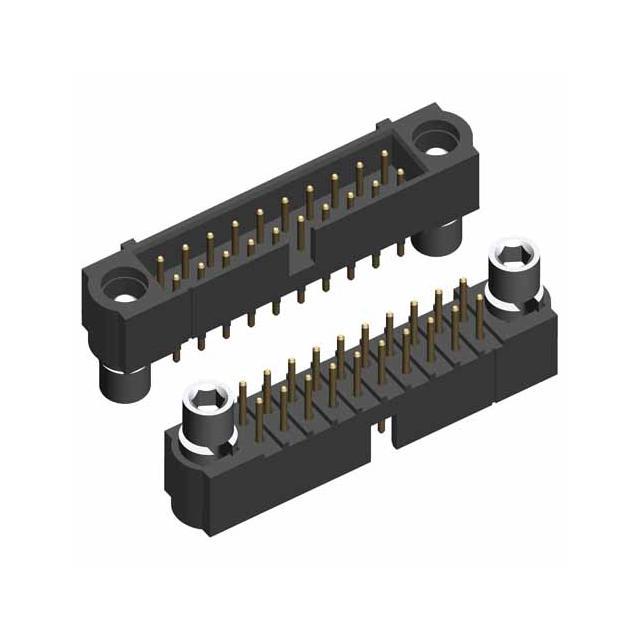

Harwin Inc. M80-5T12642MB

M80-5T12642MB Harwin Inc.
Harwin Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
12.0µin (0.30µm)
Number of Positions:
26
Overall Contact Length:
-
Insulation Height:
0.220" (5.60mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Circular, Square
Mated Stacking Heights:
-
Voltage Rating:
800VAC/DC
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
29.5µin (0.75µm)
Fastening Type:
Threaded
Termination:
Solder
Current Rating (Amps):
3A
Contact Length - Post:
0.130" (3.30mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Jackscrews, Mating Guide
Mounting Type:
Through Hole
Series:
Datamate J-Tek
Packaging:
Bulk
Insulation Material:
Polyphenylene Sulfide (PPS), Glass Filled
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze Alloy
Base Product Number:
M80-5T1
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is M80-5T12642MB. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. Additionally, it features 12.0µin (0.30µm) of post thickness. The product carries possible position value of 26. 0.220" (5.60mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical circular, square shape. Moreover, the product has a nominal 800vac/dc voltage rating. It carries 0.079" (2.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 29.5µin (0.75µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, threaded is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 3a. 0.130" (3.30mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include jackscrews, mating guide. The product is available in through hole configuration. The product datamate j-tek, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyphenylene sulfide (pps), glass filled insulation material. It has typical contact type of male pin. The product is made from sturdy phosphor bronze alloy materials. Moreover, it corresponds to m80-5t1, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
M80-5TzzzzMB Drawing(Datasheets)
pdf icon
M80, M83 Series Spec Sheet(Datasheets)
pdf icon
Harwin REACH(Environmental Information)
pdf icon
M80-001(Other Related Documents)
pdf icon
M80-0110001(Other Related Documents)
