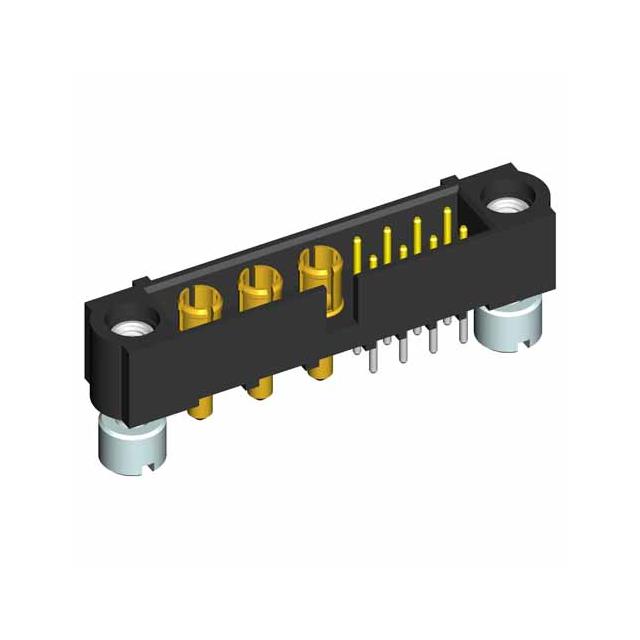

Harwin Inc. M80-5T10822M2-03-331-00-000

M80-5T10822M2-03-331-00-000 Harwin Inc.
Harwin Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Tin-Lead
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-55°C ~ 125°C
Number of Positions:
11
Overall Contact Length:
-
Insulation Height:
0.232" (5.90mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
-
Material Flammability Rating:
UL94 V-0
Contact Shape:
Circular, Square
Contact Finish Thickness - Mating:
29.5µin (0.75µm)
Voltage Rating:
800VAC/DC
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Threaded
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.130" (3.30mm)
Pitch - Mating:
-
Ingress Protection:
-
Features:
Jackscrews, Mating Guide
Mounting Type:
Through Hole
Series:
Datamate Mix-Tek
Packaging:
Tube
Insulation Material:
Polyphenylene Sulfide (PPS), Glass Filled
Contact Material:
Phosphor Bronze Alloy
Base Product Number:
M80-5T1
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is M80-5T10822M2-03-331-00-000. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible tin-lead contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 11. 0.232" (5.90mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It carries ul94 v-0 of material flammability rating. It has a typical circular, square shape. However, 29.5µin (0.75µm) is the "Contact Finish Thickness - Mating" of the product. Moreover, the product has a nominal 800vac/dc voltage rating. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, threaded is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. Additionally, the product's output is 3a. 0.130" (3.30mm) is the given possible contact length (post) values. The splendid features of the product include jackscrews, mating guide. The product is available in through hole configuration. The product datamate mix-tek, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. It has a robust polyphenylene sulfide (pps), glass filled insulation material. The product is made from sturdy phosphor bronze alloy materials. Moreover, it corresponds to m80-5t1, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
M80-5T10822M2-03-331-00-000 Drawing(Datasheets)
pdf icon
M80, M83 Series Spec Sheet(Datasheets)
pdf icon
Harwin REACH(Environmental Information)
pdf icon
M80-0110001(Other Related Documents)
pdf icon
M80-263F102-00-00(Other Related Documents)
