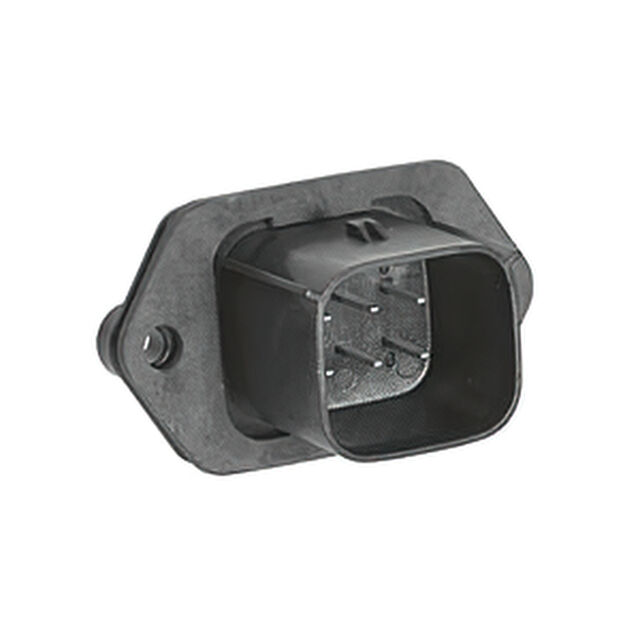

Molex 0194280028

0194280028 Molex
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
6
Contact Finish - Post:
Tin
edacadModel:
0194280028 Models
Overall Contact Length:
-
title:
0194280028
Insulation Height:
1.094" (27.80mm)
Insulation Color:
Black
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive, General Purpose, Industrial
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3183282
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
0.236" (6.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
26 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.130" (3.30mm)
Pitch - Mating:
0.230" (5.84mm)
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Board Guide, Mounting Flange
Mounting Type:
Panel Mount, Through Hole
Series:
MX150L 19428
Packaging:
Tray
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
Contact Type:
Male Blade
Contact Material:
Copper Alloy
Base Product Number:
019428
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0194280028. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 6. It has possible tin contact post finishing. 1.094" (27.80mm) of insulation height. In addition, black is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive, general purpose, industrial. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. It carries 0.236" (6.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 26 weeks standard lead time. 0.130" (3.30mm) is the given possible contact length (post) values. It has 0.230" (5.84mm) of pitch-mating value. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include board guide, mounting flange. The product is available in panel mount, through hole configuration. The product mx150l 19428, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust polybutylene terephthalate (pbt), glass filled insulation material. It has typical contact type of male blade. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 019428, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
194280028 RoHS Cert of Compliance(Environmental Information)
pdf icon
MX150L Series Assembly Instr(Datasheets)
pdf icon
194280028(Datasheets)
pdf icon
0194280028.pdf(3D Drawings)
