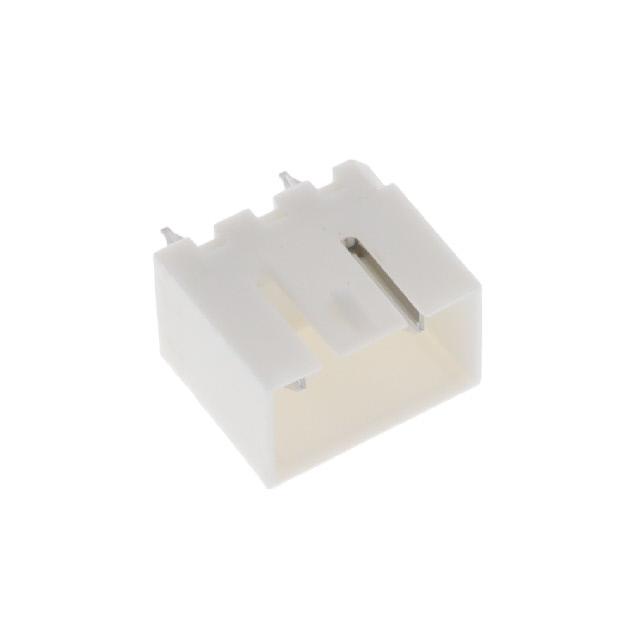

Molex 0532650229

0532650229 Molex
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Number of Positions:
3
Contact Finish - Post:
Tin
edacadModel:
0532650229 Models
Overall Contact Length:
-
Insulation Height:
0.413" (10.50mm)
Insulation Color:
-
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4093004
Contact Shape:
Square
Contact Finish Thickness - Mating:
-
Voltage Rating:
250V
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
2
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Locking Ramp
Termination:
Press-Fit, Solder
standardLeadTime:
12 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.138" (3.50mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
53265
Packaging:
Tray
Insulation Material:
Polybutylene Terephthalate (PBTP)
Contact Material:
Brass
Base Product Number:
053265
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0532650229. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 3. It has possible tin contact post finishing. 0.413" (10.50mm) of insulation height. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 250v voltage rating. header Connector type offer robust functionality. However, 2 is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, locking ramp is the Fastening Type of the product. The product features press-fit, solder termination style. It has a long 12 weeks standard lead time. Additionally, the product's output is varies by wire gauge. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.138" (3.50mm) of pitch-mating value. The product is available in through hole configuration. The product 53265, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust polybutylene terephthalate (pbtp) insulation material. The product is made from sturdy brass materials. Moreover, it corresponds to 053265, a base product number of the product. The product is designated with the ear99 code number.
