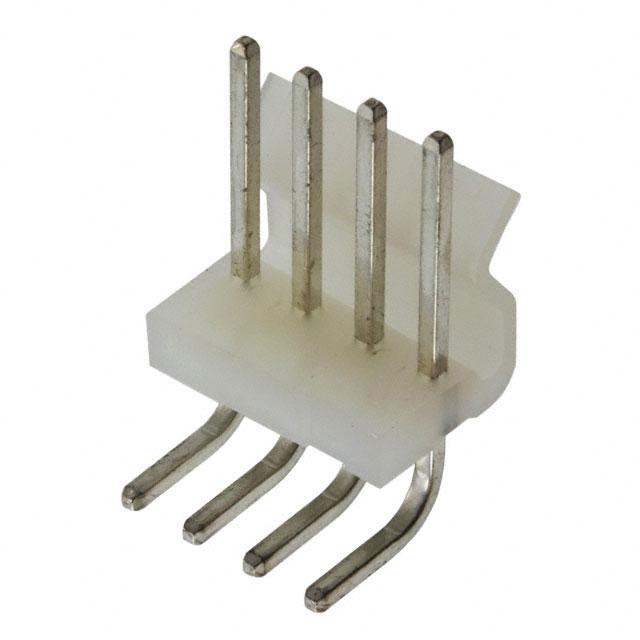

Molex 0009752044

0009752044 Molex
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
4
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 1 Wall
Overall Contact Length:
-
Insulation Height:
0.402" (10.20mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
0009752044 Models
Applications:
Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-2
edacadModelUrl:
/en/models/2405454
Insulation Color:
-
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA66), Nylon 6/6
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.535" (13.59mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Friction Lock
Termination:
Solder
Current Rating (Amps):
-
Contact Length - Post:
0.142" (3.60mm)
Pitch - Mating:
0.156" (3.96mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
KK396, 5274
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
000975
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0009752044. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 4. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 1 wall. 0.402" (10.20mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial, medical, telecommunications. It comes in 1 of rows. It carries ul94 v-2 of material flammability rating. It has a typical square shape. It has a robust polyamide (pa66), nylon 6/6 insulation material. It is shipped in bulk package . header Connector type offer robust functionality. It is 0.535" (13.59mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, friction lock is the Fastening Type of the product. The product features solder termination style. 0.142" (3.60mm) is the given possible contact length (post) values. It has 0.156" (3.96mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product kk396, 5274, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 000975, a base product number of the product. The product is designated with the ear99 code number.
