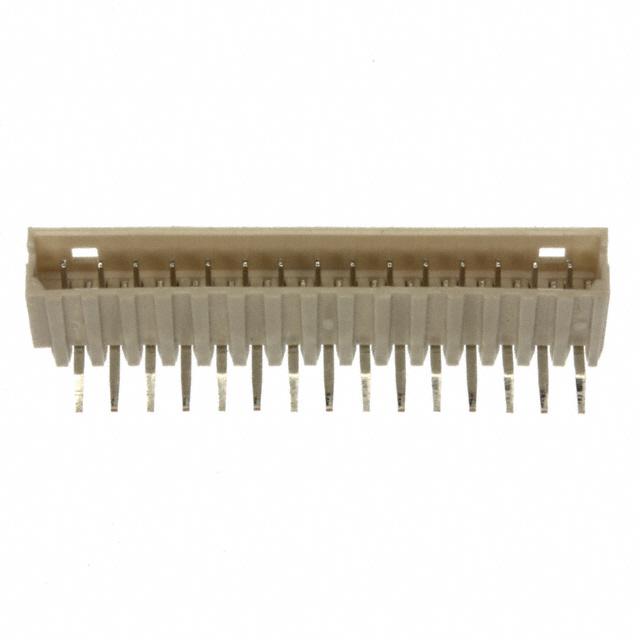

Molex 0530151510

0530151510 Molex
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
15
Overall Contact Length:
-
Insulation Height:
0.183" (4.65mm)
Voltage Rating:
-
Shrouding:
Shrouded - 4 Wall
Applications:
General Purpose, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Insulation Color:
White
Contact Shape:
Rectangular
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA66), Nylon 6/6, Glass Filled
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.122" (3.10mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
35.4µin (0.90µm)
Fastening Type:
Detent Lock
Termination:
Press-Fit, Solder
Current Rating (Amps):
-
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
MicroBlade 53015
Contact Type:
Male Blade
Contact Material:
Phosphor Bronze
Base Product Number:
053015
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0530151510. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 15. 0.183" (4.65mm) of insulation height. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in general purpose, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, white is the insulation color of the product. It has a typical rectangular shape. It has a robust polyamide (pa66), nylon 6/6, glass filled insulation material. It is shipped in bulk package . header Connector type offer robust functionality. It is 0.122" (3.10mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 35.4µin (0.90µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, detent lock is the Fastening Type of the product. The product features press-fit, solder termination style. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product microblade 53015, is a highly preferred choice for users. It has typical contact type of male blade. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 053015, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
53015-1510 RoHS Cert of Compliance(Environmental Information)
pdf icon
53014 ,53015 ,53258 ,53265 Series 27/Oct/2015(PCN Assembly/Origin)
pdf icon
PS-51004-002 Spec(Datasheets)
pdf icon
53015-1510.pdf(3D Drawings)
pdf icon
53015-xx10 Series Drawing(Product Drawings)
pdf icon
0530151510 Drawing(Product Drawings)
