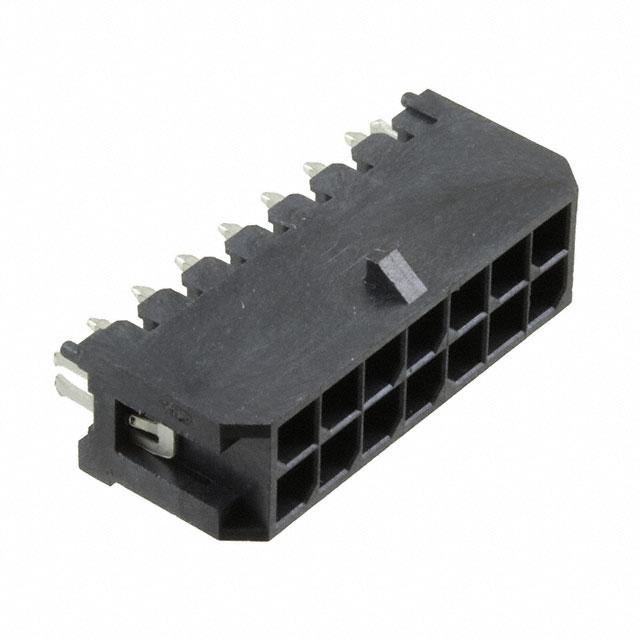

Amphenol ICC (Commercial Products) G88MP14102CEU

G88MP14102CEU Amphenol ICC (Commercial Products)
Amphenol ICC (Commercial Products)

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
14
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.390" (9.91mm)
Voltage Rating:
250V
edacadModel:
G88MP14102CEU Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/5423361
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Tray
Row Spacing - Mating:
0.118" (3.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
14 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.083" (2.11mm)
Pitch - Mating:
0.118" (3.00mm)
Ingress Protection:
-
Features:
Board Guide, Board Lock
Mounting Type:
Through Hole
Series:
Micro Power
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
G88MP
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol ICC (Commercial Products). The manufacturer part number is G88MP14102CEU. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 14. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.390" (9.91mm) of insulation height. Moreover, the product has a nominal 250v voltage rating. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust liquid crystal polymer (lcp) insulation material. It is shipped in tray package . It carries 0.118" (3.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 14 weeks standard lead time. Additionally, the product's output is varies by wire gauge. 0.083" (2.11mm) is the given possible contact length (post) values. It has 0.118" (3.00mm) of pitch-mating value. The splendid features of the product include board guide, board lock. The product is available in through hole configuration. The product micro power, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to g88mp, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Micro/Mini Power Series Brief(Datasheets)
pdf icon
G88MPxx1x2xxEU Drawing(Product Drawings)
