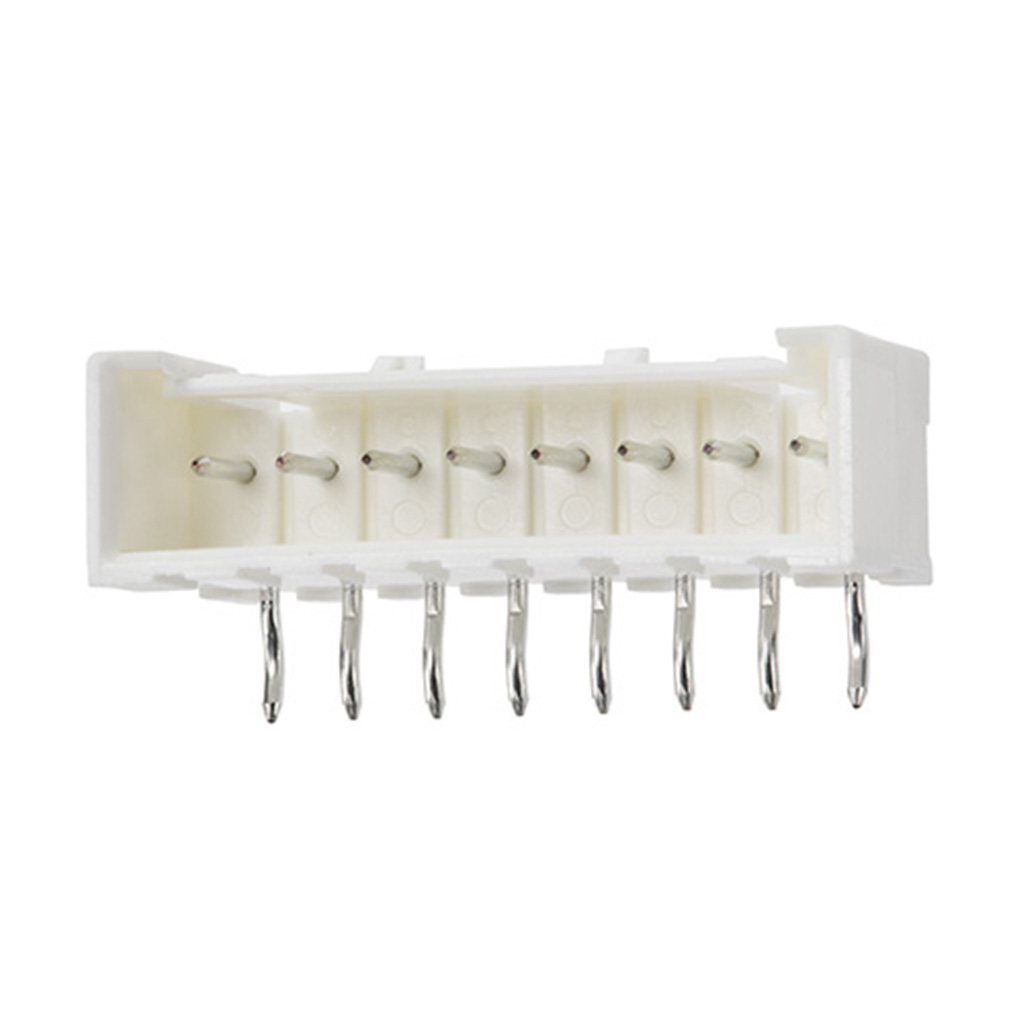

Molex 0534261110

0534261110 Molex
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
11
Contact Finish - Post:
Tin
edacadModel:
0534261110 Models
Overall Contact Length:
-
Insulation Height:
0.264" (6.70mm)
Insulation Color:
White
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
General Purpose, Industrial
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3263238
Contact Shape:
Circular
Mated Stacking Heights:
-
Voltage Rating:
250V
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.157" (4.00mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Locking Ramp
Termination:
Kinked Pin, Solder
standardLeadTime:
17 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.134" (3.40mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
Mini-Lock 53426
Packaging:
Tray
Insulation Material:
Polybutylene Terephthalate (PBTP), Glass Filled
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
053426
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0534261110. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 11. It has possible tin contact post finishing. 0.264" (6.70mm) of insulation height. In addition, white is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in general purpose, industrial. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. Moreover, the product has a nominal 250v voltage rating. header Connector type offer robust functionality. It is 0.157" (4.00mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, locking ramp is the Fastening Type of the product. The product features kinked pin, solder termination style. It has a long 17 weeks standard lead time. Additionally, the product's output is varies by wire gauge. 0.134" (3.40mm) is the given possible contact length (post) values. It has 0.098" (2.50mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product mini-lock 53426, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust polybutylene terephthalate (pbtp), glass filled insulation material. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 053426, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
534261110 RoHS Cert of Compliance(Environmental Information)
pdf icon
53426 Series Location 19/Jul/2023(PCN Assembly/Origin)
pdf icon
534261110(Datasheets)
pdf icon
53426-1110.pdf(3D Drawings)
